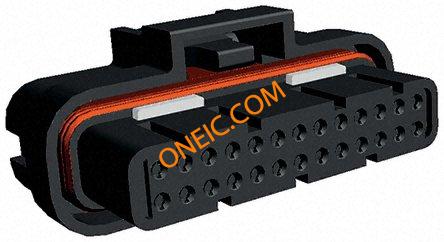

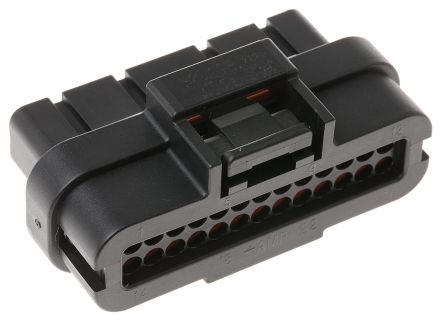

1473712-1

点击放大查看

1473712-1

制造商
TE Connectivity Ltd.
描述Conn Housing PL 26 POS Crimp ST Cable Mount Super Seal 1.0mm SUPER SEAL 2ROW 26POS PLUG ASS Superseal 1.0 26 way plug housing, 2 row Automotive Connectors SUPER SEAL 2ROW 26POS PLUG ASS 1473712-1 Conn Housing PL 26 POS Crimp ST Cable Mount Product Highlights:Plug HousingNumber of Positions = 26Number of Rows = 2Lock Type = UpperWithout Polarization KeySearch Keywords:wire-to-printed circuit board, extreme, environments, automotive, off-highway, underhood automotive systems, marine outboard engines, motorcycles, snowmobiles, agricultural equipment, off-road truck, bus Superseal1.026wayplughousing,2row TE Connectivity SUPER SEAL 系列 2行 26路 电缆安装 黑色 公 外壳
分类

商业参数

产品Housings产品类别Automotive Connectors
标准包装数量Trays工厂包装数量42

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

机械参数

颜色Black深度31.65mm
宽度59.2mm高度25.55mm
锁定类型Upper包装方式Tray
触头类型Female Socket极化Without
安装类型Straight连接器类型Plug
紧固类型Latch Lock安装样式Wire
排数2壳体材料PBT
连接器颜色Black触点数26
接触件端接Crimp位数26

产品信息

备注Contacts Not Provided类型Housing
连接器性别PL系列Super Seal
产品子类型Plug Housing
