点击放大查看

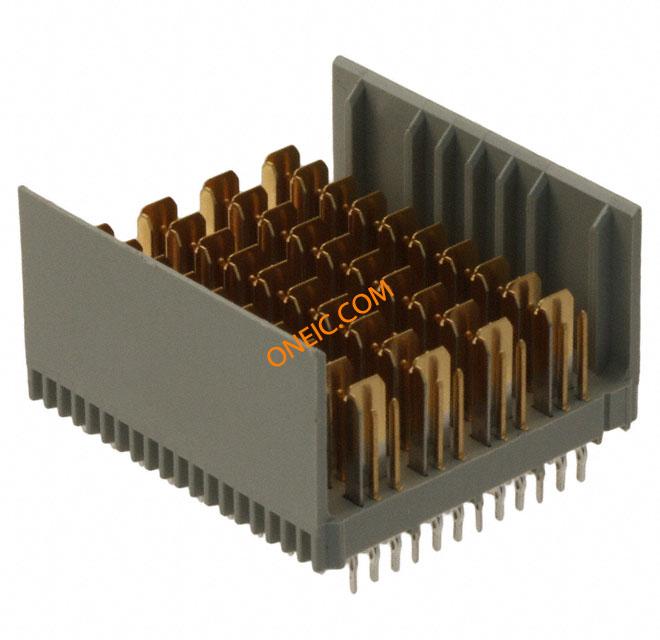

1469002-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Advanced TCA HDR 80 POS 2.5mm Press Fit ST Thru-Hole Z-PACK HM-Zd Connectors, Cable Assemblies and Accessories CONN HEADER 80POS 4ROW VERT Connector,HM Zd,recpt,vertical,80 Way High Speed / Modular Connectors Z-PACK HM-ZD HEADER Conn Advanced TCA HDR 80 POS 2.5mm Press Fit ST Thru-Hole Product Highlights:HeaderConnector Type = 10 ColumnInterface Type = HM-ZdContact Type = ACTION PIN PostFeedthrough Post Length = 2.50 mmSearch Keywords:board to board, high speed, hard metric, Z-PACK, mezzanine board, coplanar board, mid-plane board, Telcordia, parallel, stacking, horizontal, two piece, hmzd, HM-zD, HM-ZD, hm-zd HEADER,HM-ZD,80POS,10COLUMN,ACTIONPINPOST,5.22MM,PCB TE Connectivity Z-PACK HM-Zd 系列 2.5mm 节距 80 路 直向 8 排 公 背板连接器, 按式端子 HM-ZD 4PR HDR 80P 5.2MM |
| 分类 |
商业参数
| 产品类别 | High Speed / Modular Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 接口 | HM-Zd | 额定电压 | 250V |
| 数据速率（最大） | ≤12 | 最大额定电流 | 0.700A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 23.43 mm | 间距 | 2.5 mm |
| 高度 | 13.4 mm | 长度 | 24.9 |
| 包装方式 | Tube | 壳体颜色 | 灰色 |
| 方向 | 直 | 端接方式 | Press Fit |
| 触头类型 | ACTION PIN Post | 安装类型 | Through Hole |
| 电缆间距 | 25.4 [1] | 连接器类型 | Header, Male Pins and Blades |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 8 | 连接器样式 | High Speed |
| 连接器用途 | Backplane | 插入件材料 | 磷青铜 |
| 屏蔽材料 | Phosphor bronze | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 24.90 [0.980] |
| 包装数量 | 20 | 面板安装类型 | 垂直 |
| 端接排数 | 按式 | 端接样式 | Solder Pin |
| 连接器颜色 | 40 | 触点数 | 80 |
| 端接表面处理 | Tin-Lead over Nickel | 位数 | 80 |
| 柱体长度（配合） | 2.50 [0.098] | 典型触点布局 | 80 Single Signal, 40 Ground |
| 接触长度 - 配合 | 5.30 [0.209] | 法兰下方引脚尺寸 | 否 |
| 接触镀层厚度 | 30µin (0.76µm) | 后壳材料及镀层 | 4 对，高速硬公制 |
产品信息
| 制造商 | 2.5 | 类型 | Advanced TCA |
| 连接器性别 | Male | 系列 | 1469002 |
| 带定序器 | No | 制造商全称 | AMP |
| 产品子类型 | Header | 控制器系列 | 是 |
| 列数 | 10 | 选择性装载 | No |
| 加载位置数 | All | 转换前位置数 | 10 |
环境参数
| 工作温度 | -65°C ~ 105°C | ||
