点击放大查看
146130-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 4POS DUAL SMD Headers & Wire Housings 04 MODII HDR DRST SF 4950 Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 4Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR DRST SFMNT B/A |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 110 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 认可国家 | CSA LR7189, UL E28476 |
| 保护特性 | Without | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定交流电压 | 30 | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 750 V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 不带 | 包装方式 | Tube |
| 壳体颜色 | 黑色 | 排间距 | 0.100" (2.54mm) |
| 稳定剂 | Without | 端接方式 | Solder |
| 触头类型 | Male Pin | 第一连接器 | 否 |
| 第二连接器 | Without | 触点形状 | Square |
| 安装类型 | Surface Mount | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Gold Over Nickel | 安装样式 | 标准 |
| 排数 | 2 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 包装数量 | 110 | 面板安装类型 | 表面贴装 |
| 端接样式 | SMD | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 触点数 | 4 |
| 端接表面处理 | Matte Tin-Lead | 位数 | 4 |
| 引脚总长度 | 2.29 | 柱体长度（配合） | 5.84 mm |
| 安装孔直径 | 不带 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 端子柱长度 | 5.84 mm [ .23 in ] | 接触镀层厚度 | 30µin (0.76µm) |
| 静电放电屏蔽 | 不带 | 端接镀层厚度 | 100 – 200 |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 钥匙类型 | 否 |
| 产品子类型 | Headers | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 温度 | Yes |
| 工作温度 | - 65 C to + 125 C | 封装热阻 | 1.57 mm [ .062 in ] |
文档与媒体
相关型号
5-87456-0
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 4POS .100 DUAL ROW Headers & Wire Housings 4P 2 ROW HOUSING Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X2WAY RECEPTACLE,AMPMODU,MODIV,4POSITION,.100IN,DUALROW,MARKED Crimp housing Pitch2.54 mm Poles 4 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 5-87456-0, TE Connectivity 04 MODIV HSG DR MRKD .100CL
147105-2
te connectivity / amp
Conn Socket Strip RCP 4 POS 2.54mm Solder ST SMD T/R .100 inch AMPMODU Receptacles CONN RCPT 4POS DUAL VERT SMD Headers & Wire Housings 04 MODIV VRT DR 04 MODIV VRT DR SFMNT 30AU 04 MODIV VRT DR SFMNT 30AU Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
146140-1
te connectivity / amp
Conn Socket Strip RCP 4 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 4POS DUAL R/A .100 T/H Headers & Wire Housings 04 MODII HORZ DR CE .100CL 04 MODII HORZ DR CE .100CL 04 MODII HORZ DR CE .100CL Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
534206-2
te connectivity / amp
Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 4POS .100 VERT DUAL Headers & Wire Housings RECPT 4P VERT DUAL Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 04 MODII VRT DR CE 100/115
5-534206-2
te connectivity / amp
Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 4POS .100 VERT DUAL Headers & Wire Housings REC 2X02P VRT T/H VERT DUAL Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 04 MODII VRT DR CE 100/115
6-102084-4
te connectivity / amp
Conn Socket Strip RCP 4 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 4POS HORZ DUAL TIN Headers & Wire Housings 04 MODII HORZ DR CE EESS 100CL Conn Socket Strip SKT 4 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Conn Socket Strip SKT 4 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 4Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 04 MODII HORZ DR CE EESS 100CL
535598-3
te connectivity / amp
Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 4POS .100 DUAL T/H AU Headers & Wire Housings 04 MODIV VRT DR CE RCPT ASSY 04 MODIV VRT DR CE RCPT ASSY 04 MODIV VRT DR CE RCPT ASSY Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
104482-1
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 4POS .100 DUAL ROW 104482-1 Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorHousingConnector Style = ReceptacleContact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 04 SHORT PT RCPT HSG DR .100CL
535542-2
te connectivity / amp
Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Headers & Wire Housings 04 MODIV VRT DR CE 100/130 .100 inch AMPMODU Receptacles CONN RECEPT 4POS .100 VERT DUAL Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 04 MODIV VRT DR CE 100/130

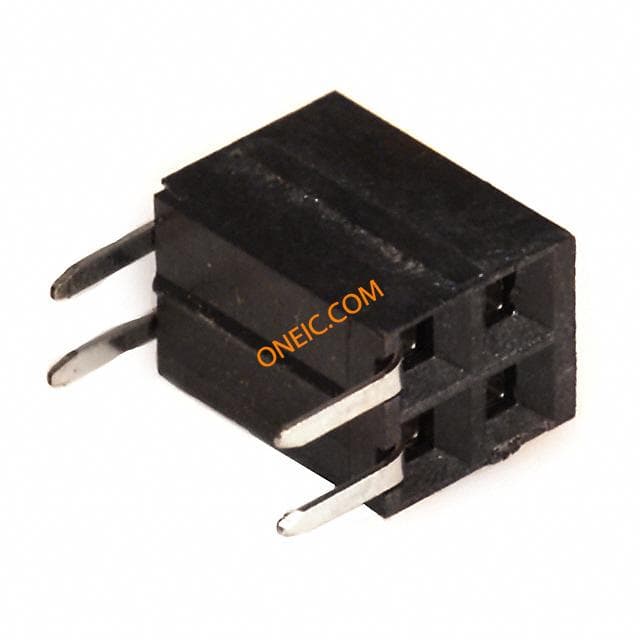

6-535512-1
