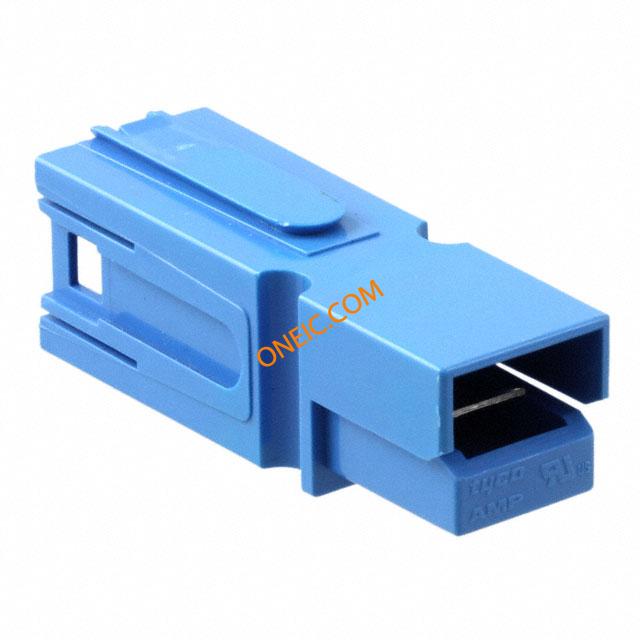

1445715-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Power Connectors CONN HOUSING 1POS BLUE Power to the Board 75A HSG ASBLY BLUE 75A HSG SUBASY BLUE 75A HSG SUBASY BLUE Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant |
| 分类 |
商业参数
| 标准包装规格 | 300 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 48 V | 供电电压 | 600 |
| 最大额定电流 | 75 A | ||
机械参数
| 颜色 | Blue | 宽度 | 17.15 mm [ .675 in ] |
| 高度 | 17.15 mm [ .675 in ] | 长度 | 48 mm [ 1.89 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 壳体颜色 | 蓝色 | 电缆类型 | 分离式导线 |
| 导线线规 | 13 – 14 | 端接方式 | Crimp |
| 触头类型 | Non Gendered | 安装类型 | Cable Mount |
| 电缆直径 | 25656 – 27629 | 连接器类型 | Non Gendered |
| 接触镀层 | Silver | 紧固类型 | Spring Retention |
| 排数 | 1 | 触头材料 | Copper |
| 壳体材料 | Polycarbonate (PC) | 包装数量 | 300 |
| 面板安装类型 | 不带 | 接触件端接 | Crimp |
| 位数 | 1 | 外壳尺寸-插件 | 插头/插座 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | 线规或范围 - AWG | 6 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Power |
| 连接器性别 | M | 产品特性 | Stackable |
| 产品子类型 | 护套 | 应用细节 | Power |
环境参数
| 工作温度 | -20 – 105 | ||
