点击放大查看

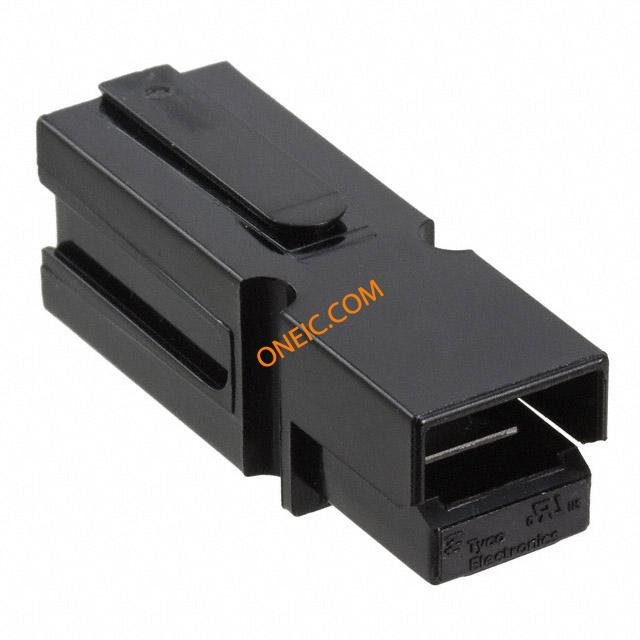

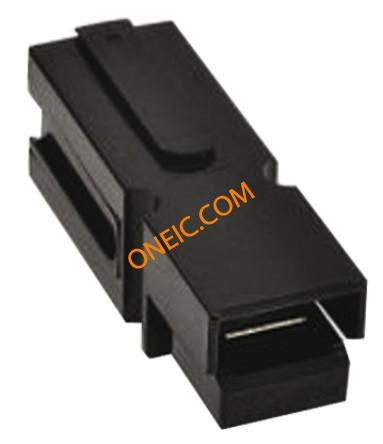

1445715-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Power Connectors CONN HOUSING 1POS BLACK Housing,crimp, AMP POWER Series 75,black Power to the Board 75A HSG SUBASY BLACK Conn Power M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Product Highlights:Housing75 AMP SeriesConnector Type = Single-Pole Modular ConnectorCurrent = 75 Amps.Housing Color = BlackSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant 75AHSGSUBASYBLACK 75A HSG SUBASY BLACK |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 80 V | 最大额定电流 | 75A |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Black | 深度 | 48 mm |
| 间距 | Not Required mm | 高度 | 17.15 mm |
| 包装方式 | Bulk | 端接方式 | Crimp |
| 触头类型 | Non Gendered | 安装类型 | Cable Mount |
| 连接器类型 | Non Gendered | 接触镀层 | Silver |
| 紧固类型 | Spring Retention | 安装样式 | Cable |
| 排数 | 1 | 触头材料 | Copper |
| 壳体材料 | Polycarbonate (PC) | 总长度 | 17.15 mm |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 位数 | 1 | 绝缘材料 - 材质 | Polycarbonate (PC) |
| 线规或范围 - AWG | 6 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Power |
| 连接器性别 | M | 产品特性 | Stackable |
| 产品子类型 | Plug Housings | 端口数 | 1 Port |
环境参数
| 工作温度 | -20C to 105C | 结工作温度 | 105C |
