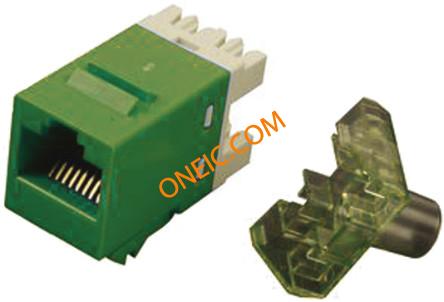

点击放大查看
1375191-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Modular Jack F 8 POS IDT RA Cable Mount 8 Terminal 1 Port Poly Bag Cat 5e Cable Mounted Jacks CONN MOD JACK 8P8C Cat5e SL110 RJ45 UTP modular jack, green Modular Connectors / Ethernet Connectors ASSY SL110 C5E GRN Conn Modular Jack F 8 POS IDT RA Cable Mount 8 Terminal 1 Port Poly Bag Cat 5e Product Highlights:JackJack Type = 110ConnectNumber of Positions = 8Wiring Pattern = UniversalTermination Style = 110 style punch-downSearch Keywords:twisted pair cable, insulation-displacement, discrete wire, modular jacks, phone jacks, cable, input/output, box to box, HD Series ASSY,SL110JACK,C5E,GREEN Modular UTP Jack IDC - Press-Fit |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 接触电阻 | 20 mohm | 最小供电电压 | 150VAC |
| 连接器类型 - 电压输入 | Cat5e | ||
机械参数
| 颜色 | Green | 深度 | 16.25 mm |
| 高度 | 30.48 mm | 包装方式 | Bag |
| 屏蔽 | Unshielded | 屏蔽类型 | No |
| 端接方式 | IDT | 外壳颜色 | Green |
| 安装类型 | Cable Mount | 连接器类型 | 110Connect |
| 接触镀层 | Matte Tin over Nickel | 安装样式 | Panel |
| 触头材料 | Beryllium Copper | 壳体材料 | Polycarbonate |
| 总长度 | 14.47 mm | 包装数量 | Poly Bag |
| 端接样式 | 110 style punch-down | 触点数 | 8 |
| 位数 | 8 | 外部壳体颜色 | Green |
| 外部触点表面处理 | Gold | 外部触点材料 | Beryllium Copper |
| 外部壳体材料 | Polycarbonate (PC) | 内部类型（适配器端） | IDC, Pressdown, Punchdown Block |
| 外部触点镀层厚度 | 50µin (1.27µm) | ||
产品信息
| 类型 | Modular Jack | 样式 | Modular |
| 连接器性别 | F | USOC 编码 | RJ45 |
| 摄像头类型 | Modular Jack 8p8c (RJ45, Ethernet) | 编码、键控 | No |
| 产品子类型 | Jack | 配置 | 8-Wire RJ45 |
| 适配器系列 | SL | 图案编号 | Universal |
| 类别编号 | Cat 5e | 端口数 | 1 Port |
| 连接方式 | IDC - Press-Fit | 模块/板类型 | Modular UTP Jack |
| 射频系列/标准 | SL | 互连系统 | No |
| 其他规格 | T568A/B | 性能类别 | Enhanced Cat 5 |
| 加载位置数 | 8 | ||
环境参数
| 额定等级 | Cat5e | 工作温度 | -10°C ~ 60°C |
