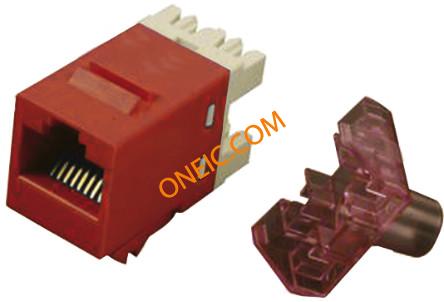

点击放大查看

1375191-7

制造商	TE Connectivity Ltd.
描述	Conn Modular Jack F 8 POS IDT RA Cable Mount 8 Terminal 1 Port Poly Bag Cat 5e Cable Mounted Jacks CONN MOD JACK 8P8C Cat 5e SL110 RJ45 UTP modular jack, red Modular Connectors / Ethernet Connectors ASSY SL110 C5E RED Conn Modular Jack F 8 POS IDT RA Cable Mount 8 Terminal 1 Port Poly Bag Cat 5e Product Highlights:Connector - ModularConnector Type = JackJack Type = 110Connect8 PositionsWiring Pattern = UniversalSearch Keywords:twisted pair cable, insulation-displacement, discrete wire, modular jacks, phone jacks, cable, input/output, box to box, HD Series ASSY,SL110JACK,C5E,RED Modular UTP Jack IDC - Press-Fit
分类	连接器解决方案模块化连接器RJ45模块化连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Modular Connectors / Ethernet Connectors	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94 V-0

电气参数

接触电阻	20 mohm	最小供电电压	150VAC
连接器类型 - 电压输入	Cat5e

机械参数

颜色	Red	深度	16.25 mm
高度	30.48 mm	包装方式	Bag
屏蔽	Unshielded	屏蔽类型	No
端接方式	IDT	外壳颜色	Red
安装类型	Cable Mount	连接器类型	110Connect
接触镀层	Matte Tin over Nickel	安装样式	Panel
触头材料	Beryllium Copper	壳体材料	Polycarbonate
总长度	14.47 mm	包装数量	Poly Bag
端接样式	110 style punch-down	触点数	8
位数	8	外部壳体颜色	Red
外部触点表面处理	Gold	外部触点材料	Beryllium Copper
外部壳体材料	Polycarbonate (PC)	内部类型（适配器端）	IDC, Pressdown, Punchdown Block
外部触点镀层厚度	50µin (1.27µm)

产品信息

类型	Modular Jack	样式	Modular
连接器性别	F	USOC 编码	RJ45
摄像头类型	Modular Jack 8p8c (RJ45, Ethernet)	编码、键控	No
产品子类型	Jack	配置	8-Wire RJ45
适配器系列	SL	图案编号	Universal
类别编号	Cat 5e	端口数	1 Port
连接方式	IDC - Press-Fit	模块/板类型	Modular UTP Jack
射频系列/标准	1375191	互连系统	No
其他规格	T568A/B	性能类别	Enhanced Cat 5
加载位置数	8

环境参数

额定等级

Cat5e

工作温度

-10°C ~ 60°C
