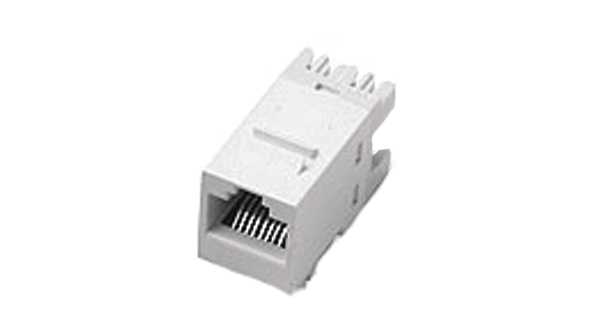

点击放大查看
1375189-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 F 8 POS Solder ST Cable Mount 8 Terminal 1 Port Bag Cat 5e Cable Mounted Jacks Modular Connectors / Ethernet Connectors 8P RJ45 REAR ENTRY SHIELDED Conn RJ-45 F 8 POS Solder ST Cable Mount 8 Terminal 1 Port Bag Cat 5e Product Highlights:JackJack Type = 110ConnectNumber of Positions = 8Wiring Pattern = UniversalTermination Style = 110 style punch-downSearch Keywords:twisted pair cable, insulation-displacement, discrete wire, modular jacks, phone jacks, cable, input/output, box to box, HD Series CONN MOD JACK 8P8C SHIELDED null Modular jack 8, 1375189-1, TE Connectivity TE Connectivity 直角 母 RJ45 模块化插孔 , Cat5e, 屏蔽, 面板安装型 |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 极数 | 8 | ||
机械参数
| 颜色 | Black | 深度 | 30.48mm |
| 宽度 | 15.37mm | 长度 | 15.37mm |
| 屏蔽 | Shielded | 屏蔽类型 | Yes |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 连接器类型 | 110Connect |
| 接触镀层 | Matte Tin over Nickel | 安装样式 | Cable |
| 触头材料 | Beryllium Copper | 壳体材料 | Polyphenylene Oxide (PPO) |
| 包装数量 | Poly Bag | 端接样式 | 110 style punch-down |
| 触点数 | 8 | 位数 | 8 |
| 外部壳体颜色 | Black | 外部触点表面处理 | Gold |
| 外部触点材料 | Beryllium Copper | 外部壳体材料 | Polycarbonate (PC) |
| 内部类型（适配器端） | IDC, Pressdown, Punchdown Block | 外部触点镀层厚度 | 50µin (1.27µm) |
产品信息
| 类型 | RJ-45 | 样式 | Modular |
| 连接器性别 | F | 系列 | SL 110 |
| 方向 | 直角 | USOC 编码 | RJ45 |
| 摄像头类型 | Modular Jack 8p8c (RJ45, Ethernet) | 描述 | Modular jack 8/8 RJ45, shielded |
| 编码、键控 | No | 产品子类型 | Jack |
| 图案编号 | Universal | 线路数量 | 8P8C |
| 端口数 | 1 | 网络技术 | Cat5e |
| 互连系统 | No | 性能类别 | Enhanced Cat 5 |
环境参数
| 额定等级 | Cat5e | 工作温度 | -10°C ~ 60°C |
