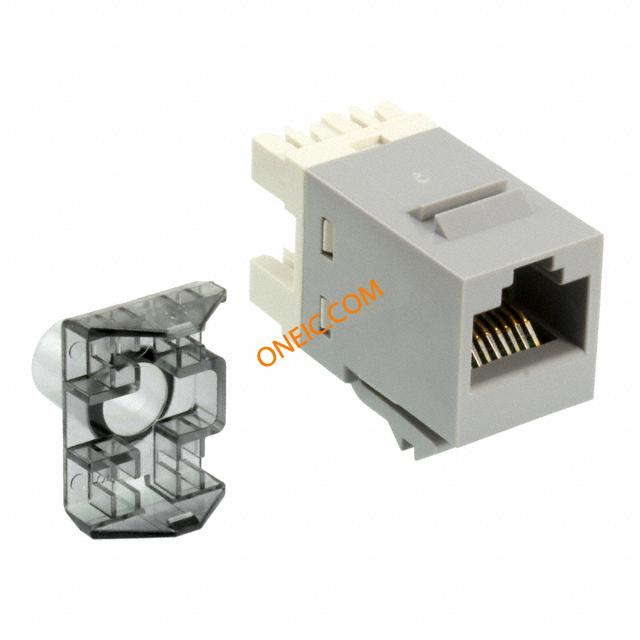

1375055-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 F 8 POS IDT RA Panel Mount 8 Terminal 1 Port Poly Bag Cat 6 Cable Mounted Jacks CONN MOD JACK 8P8C Modular Connectors / Ethernet Connectors ASSY SL110 C6 NEMA GRAY Conn RJ-45 F 8 POS IDT RA Panel Mount 8 Terminal 1 Port Poly Bag Cat 6 Product Highlights:JackJack Type = 110ConnectNumber of Positions = 8Wiring Pattern = UniversalTermination Style = 110 style punch-downSearch Keywords:twisted pair cable, insulation-displacement, discrete wire, modular jacks, phone jacks, cable, input/output, box to box, HD Series Modular UTP Jack IDC - Press-Fit |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
机械参数
| 颜色 | Gray | 屏蔽 | Unshielded |
| 屏蔽类型 | No | 端接方式 | IDT |
| 外壳颜色 | NEMA Gray | 安装类型 | Panel Mount |
| 连接器类型 | 110Connect | 接触镀层 | Matte Tin over Nickel |
| 安装样式 | Cable | 触头材料 | Beryllium Copper |
| 壳体材料 | Polycarbonate (PC) | 包装数量 | Poly Bag |
| 端接样式 | 110 style punch-down | 触点数 | 8 |
| 位数 | 8 | 外部壳体颜色 | Gray |
| 外部触点表面处理 | Gold | 外部触点材料 | Beryllium Copper |
| 外部壳体材料 | Polycarbonate (PC) | 内部类型（适配器端） | IDC, Pressdown, Punchdown Block |
| 外部触点镀层厚度 | 50µin (1.27µm) | 内部触点镀层厚度 | 50µin (1.27µm) |
产品信息
| 类型 | RJ-45 | 样式 | Modular |
| 连接器性别 | F | USOC 编码 | RJ45 |
| 摄像头类型 | Modular Jack 8p8c (RJ45, Ethernet) | 编码、键控 | No |
| 产品子类型 | Jack | 配置 | 8-Wire RJ45 |
| 适配器系列 | SL | 图案编号 | Universal |
| 连接方式 | IDC - Press-Fit | 模块/板类型 | Modular UTP Jack |
| 互连系统 | No | 其他规格 | T568A/B |
| 性能类别 | Cat 6 | ||
环境参数
| 额定等级 | Cat6 | 工作温度 | -10°C ~ 60°C |
