点击放大查看

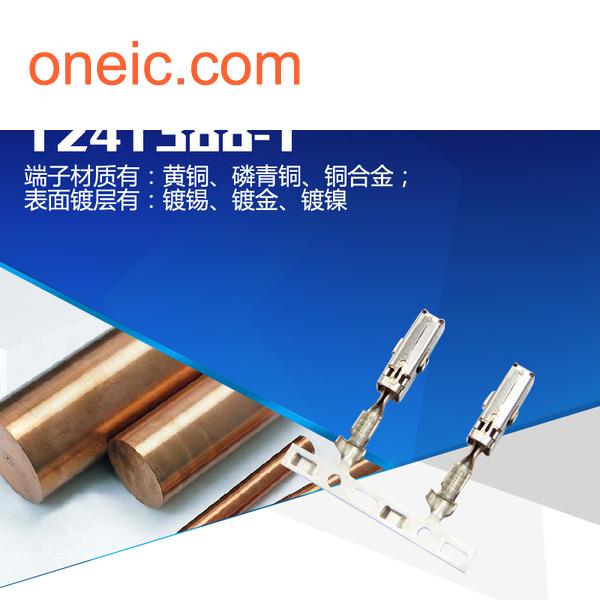

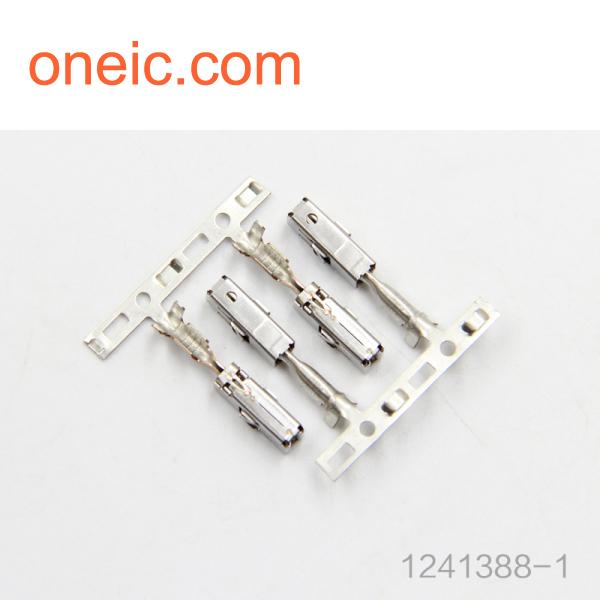

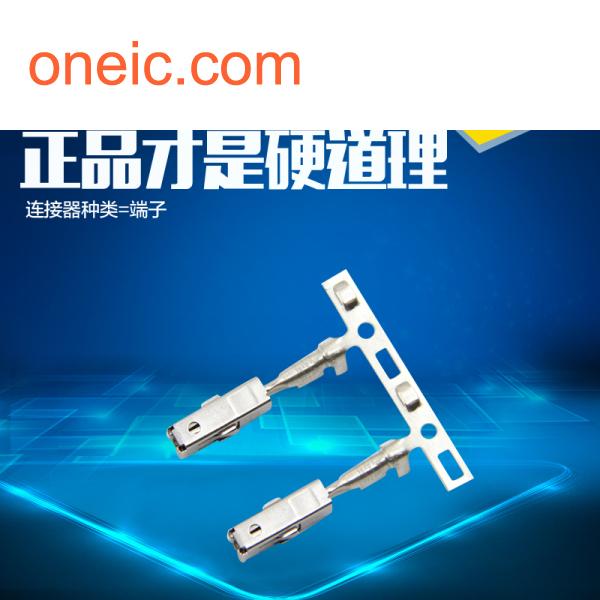

1241388-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip AMP MCP - Terminals 20-17 AWG CONTACT FEMALE MCP 2.8K receptacle contact, AWG 20-17 Automotive Connectors MCP2.8 BU-KONTAKT Timer Contacts Timer Contacts Product Highlights:ContactContact Gender = ReceptacleMultiple Contact Point (MCP) SeriesWire Range = 0.50-1.00² [20-17] mm [AWG]Insulation Diameter, Range = 1.40 - 2.10 mmSearch Keywords:MCON, MCON1.2, Multiple Contact Point (MCP), MCP. LeavySeal, LevySeal, HDSCS MCP2.8Kreceptaclecontact,AWG20-17 TE Connectivity AMP MCP 2.8K 系列 母 压接接线端子, 压接, 镀锡触点 AMP MCP 2.8K, CONTACT |
| 分类 |
商业参数
| 产品 | Contacts | 标准包装规格 | 3,500 |

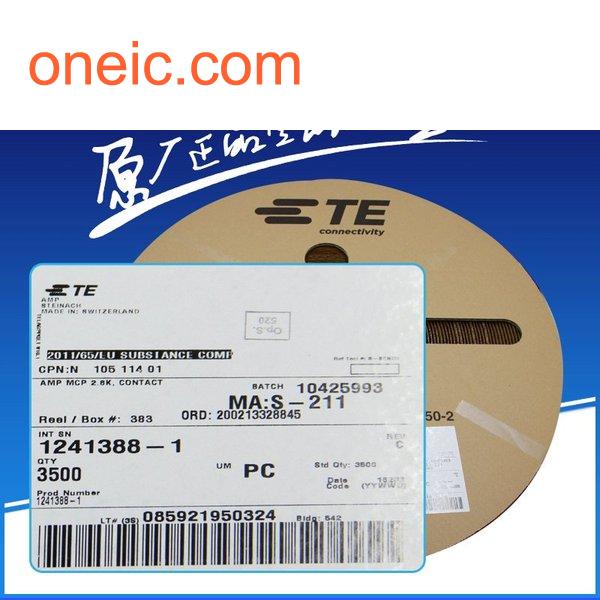

| 标准包装数量 | Tape & Reel | 工厂包装数量 | 3500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | ||
电气参数
| 输入端 | .024, .031 | 导体绞线 | 0 – 24 A（低功率） |
| 连接器阻抗 | 2.79 | ||
机械参数
| 腔体A | 15 | 锁定类型 | 锁定枪 |
| 包装方式 | Tape & Reel (TR) | 电缆类型 | FLR (Thin Walled Cable) |
| 导线线规 | 17-20 AWG | 端接方式 | Crimp |
| 重量（g） | 8.5 | 触头类型 | Signal |
| 插针或插孔 | Socket | 电缆直径 | 1mm² |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 安装样式 | Wire | 连接器样式 | 180° |
| 触头材料 | Copper-Nickel-Silicon | 包装数量 | Strip |
| 主要材料 | CuNiSi | 端接排数 | 压接 |
| 端接样式 | Crimp | 接触件端接 | Crimp |
| 绝缘直径 | 1.40-2.10 [.055-.083] | 绝缘材料 - 类型 | FLR (Thin Walled Cable) |
| 位数 | 1 | 接触件表面处理 - 配合 | 锡 (Sn) |
| 典型触点布局 | Standard | 法兰上方插针尺寸 | 2.8 mm [ .11 in ] |
| 触点材料 - 配合 | Pre-Tin | 线规或范围 - AWG | 0.50-1.00² [20-17] |
产品信息
| 制造商 | .6, .8 | 名称 | 端子 |
| 单位 | PCS | 连接器性别 | SKT |
| 系列 | Multiple Contact Point (MCP) | 数量 | 10500.0 |
| 可密封 | 否 | 制造商全称 | AMP |
| 产品子类型 | Contact | 其他规格 | Wire/Cable |
| 制造国家 | 中国 | 设备部件号 | 1241388-1.pdf |
| 最小起订量 | 1 | ||
环境参数
| 工作温度 | +130°C | 可用温度范围 | -40to+130°C |
| 结工作温度 | 130°C | ||
