点击放大查看

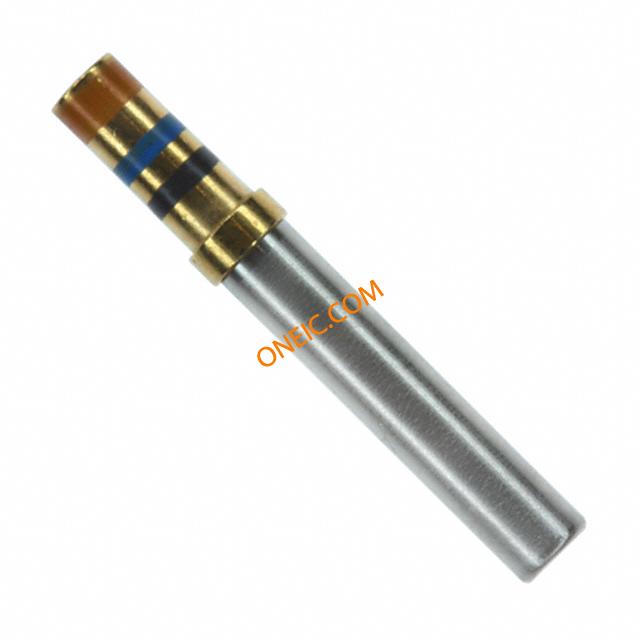

1218372-1

制造商	TE Connectivity Ltd.
描述	Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SCKT 24-20 AWG Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONTACT SOCKET 20-24AWG CRIMP
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

其他名称	A34467	产品类别	D-Sub Contacts
标准包装数量	Bulk	工厂包装数量	5000

合规参数

RoHS	RoHS Compliant	资质认证	No
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant
认证机构标志	Yes

电气参数

输出高/低电流

机械参数

包装方式	Bulk	导线线规	24-20
端接方式	Crimp	触点形式	Machined
触点尺寸	20	触头类型	Signal
连接器类型	Connector D-Subminiature	接触镀层	Gold Over Nickel
触头材料	Copper Alloy	包装数量	Loose Piece
端接样式	Crimp	第一触头极性	Socket (Female)
连接器颜色	Yes	接触件端接	Crimp
绝缘直径	1.83 [.072] Max.	线规或范围 - mm²	0.20-0.60Â² [24-20]

产品信息

备注	For full gold product, see part number 205089-1.	类型	Signal
连接器性别	SKT	系列	109
产品子类型	Contact	连接类型	Wire
设备部件号	M39029/63-368
