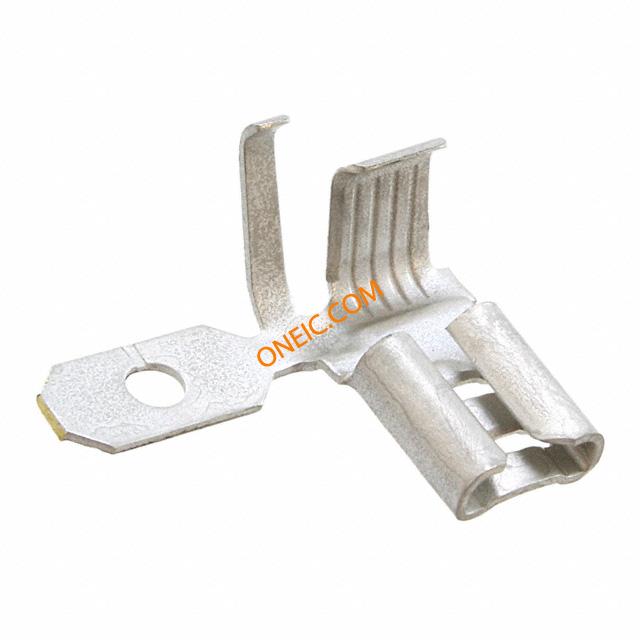

1217244-2
| 制造商 | |
| 描述 | Quick Disconnect Terminal 14-18AWG F 13.59mm 5.84mm Tin Strip Terminals RCPT FLAG .187 FASTON Uninsulated Receptacles & Housings CONN RCPT FLAG .187 18-14AWG TIN FASTON Uninsulated Receptacles & Housings Product Highlights:Product Classification = Connectors - Terminals and SplicesTerminalTerminal Type = ReceptacleMating Area Interface Dimensions = 4.75 x 0.81 mmBoard Mount = NoSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONN QC RCPT 14-18AWG 0.187 FASTON .187 RECEPTACLE 18-14 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A110921CT |
| 标准包装规格 | 5,000 | 产品类别 | Terminals |
| 标准包装数量 | 60,000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Tin | 长度 | 13.59 mm |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 4.75 x 0.81 [.187 x .032] | 厚度 | 0.41 [0.016] |
| 电缆类型 | Stranded | 绝缘类型 | Not Insulated |
| 插片长度 | 0.250" (6.35mm) | 导线线规 | 18-14 |
| 端接方式 | Crimp | 安装类型 | Wire |
| 螺柱/焊片尺寸 | 5.84 mm x 6.35 mm | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Angled - 90°, Flag | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 线束直径 | 2 mm | 连接器样式 | Flag |
| 连接器用途 | Wire & Cable | 箔压接区域 | C-Crimp |
| 插入件材料 | 黄铜 | 插入力 | Normal |
| 触头材料 | Brass | 总长度 | Budget |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 适用端子尺寸 | 2.54 – 3.94 mm [ .1 – .155 in ] | 绝缘直径 | 2.54-3.94 [.100-.155] |
| 绝缘材料 - 类型 | No | 总厚度 | .41 mm [ .016 in ] |
| 法兰上方插针尺寸 | 4.75 mm [ .187 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 接触镀层厚度 | 40 | 线规或范围 - mm² | 0.80-2.00² [18-14] |
| 第二连接器安装特性 | No | 外径-未扩张 | 3.94 mm [ .155 in ] |
产品信息
| 连接器性别 | Female | 系列 | 187 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
