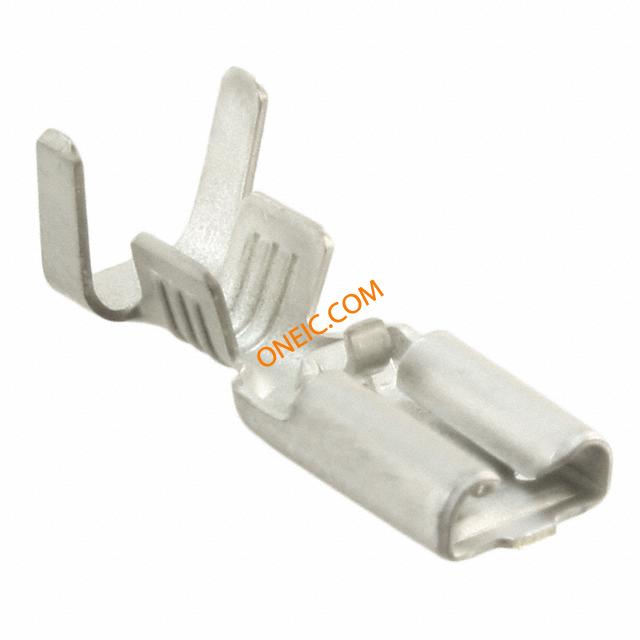

点击放大查看
1217114-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Positive Lock Connectors CONN UNINS RCPT 14-18AWG 0.187 Automotive Connectors REC 187 POS-LK MIII TPBR 18-14 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmLine = Mark IIIReceptacle Style = StraightWire Range = 0.80-2.00² [18-14] mm [AWG], (2) 0.80-0.90² [(2) 18] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, CONN QC RCPT 14-18AWG 0.187 |
| 分类 |
商业参数
| 产品 | Terminals | 其他名称 | A110907CT |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 10000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 表面处理 | Tin | 材料（通用） | Brass |
| 按键颜色 | None | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 4.75 x 0.51 [.187 x .020] | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.255" (6.48mm) | 导线线规 | 14-18 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.020" (0.51mm) |
| 端子类型 | Standard | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin | 安装样式 | Wire |
| 连接器样式 | Straight | 触头材料 | Brass |
| 总长度 | Mark III | 包装数量 | Strip |
| 绝缘直径 | (2) 2.79 [.110] Max., 3.80-5.08 [.150-.200] | 线规或范围 - mm² | 0.80-2.00² [18-14], (2) 0.80-0.90² [(2) 18] |
产品信息
| 连接器性别 | SKT | 编码、键控 | No |
| 产品子类型 | Receptacle | ||
