点击放大查看

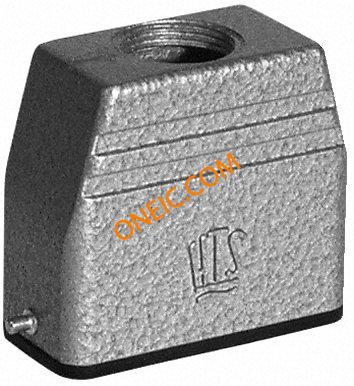

1106411-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Hood Die Cast Aluminum Varnish Gray Loose Piece HTS Connectors and Accessories CONN HOOD TOP SZ2 M20 HA.10 HD Connector, Hood HA.10.STO.1.M.20.G Heavy Duty Power Connectors Hood Sz 2 M20 HA.10.STO.1.M20.G Connector Accessories Hood Die Cast Aluminum Varnish Gray Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 TE Connectivity HA 系列 电源连接器 HA.10.STO.1.M20.G |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 尺寸 | 2 | 颜色 | 灰色 |
| 宽度 | 29 mm [ 1.139 in ] | 表面处理 | Varnish Grey |
| 高度 | 57.3 mm [ 2.251 in ] | 长度 | 63 mm [ 2.475 in ] |
| 材料（通用） | Die Cast Aluminum | 锁定类型 | 壳体底部 |
| 包装方式 | Bulk | 螺纹尺寸 | M20 |
| 外壳颜色 | Gray | 连接器类型 | Hood |
| 外壳涂层 | Powder Coated | 连接器样式 | Top |
| 锁定特性 | Side Clip at Housing Bottom | 壳体材料 | Aluminum, Die Cast |
| 包装数量 | Loose Piece | 尺寸/外形 | 2.480" L x 1.140" W x 2.255" H (63.00mm x 29.00mm x 57.30mm) |
| 外壳尺寸-插件 | 是 | 总体尺寸 | 63.0 x 57.0 x 29.0 [2.48 x 2.25 x 1.14] |
| AC输出连接器 | 顶部 | ||
产品信息
| 类型 | Hood | 样式 | Top Entry |
| 系列 | HA | 产品子类型 | Hood |
| 锁定位置 | Side Clip on Base Bottom | 附件类型 | Hood |
| 射频系列/标准 | 1106411 | ||
环境参数
| 液体防护 | No | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 耐磨防护 | 否 | ||
