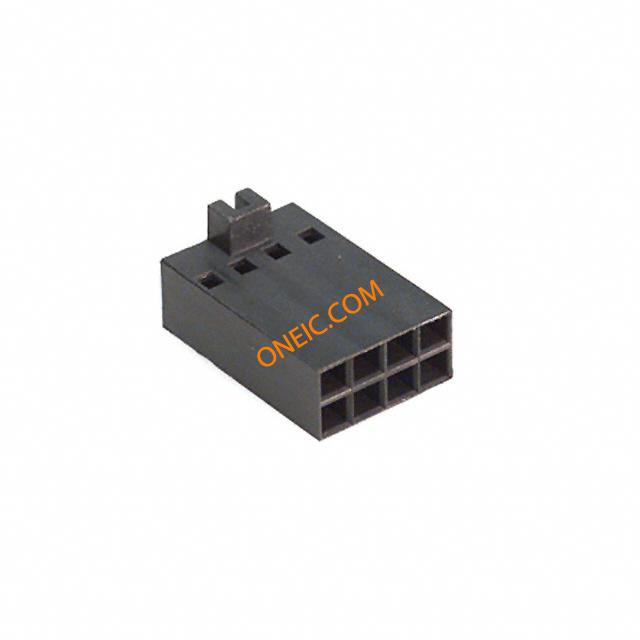

104483-1

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 8POS .100 POL DUAL Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 SHORT PT RCPT HSG DR .100CL
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS	Not applicable / RoHS Compliant	认可国家	CSA LR7189, UL E28476
材料阻燃等级	Yes

电气参数

供电电压	300 VAC	输入电阻	5000
连接器阻抗	压接	最大额定电流	3
保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
长度	10.1	包装方式	Bulk
壳体颜色	黑色	导线线规	20-32 AWG
排间距	0.100" (2.54mm)	端接方式	12 mΩ
触头类型	Female Socket	第二连接器	Without
安装类型	Straight	连接器类型	Receptacle
安装样式	不带	排数	2
高度（英寸）	5.02	壳体材料	热塑塑料
包装数量	1	面板安装类型	不带
端接样式	插座	触点数	8
接触件端接	Crimp	位数	8
兼容外壳尺寸（如TM-700等）	接触件	安装孔直径	带有
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	产品特性	Polarizing Key
产品子类型	连接器

环境参数

工作温度

-65 – 105
