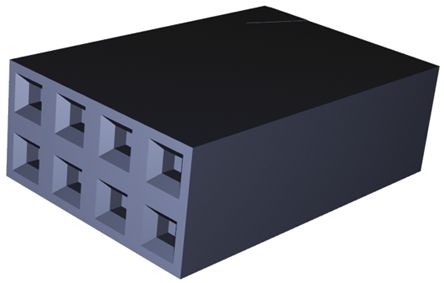

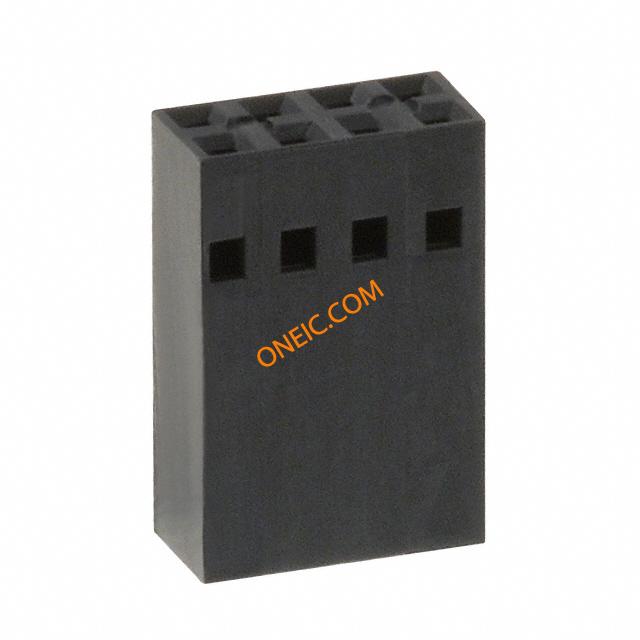

104482-3

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 8POS .100 DUAL ROW Headers & Wire Housings CONN HOUSING 8 POS NON-POLARIZED Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR,HOUSING,RECEPTACLE,SHORT,AMPMODU,6POSITION,DUALROW TE Connectivity AMPMODU Short Point 系列 2 行 2.54mm 节距 8 路直母电缆安装 PCB 连接器外壳 08 SHORT PT RCPT HSG DR .100CL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	认可国家	CSA LR7189, UL E28476
材料阻燃等级	Yes

电气参数

额定电压	300 VAC	供电电压	300 VAC
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	5.03mm
间距	2.54 mm	宽度	15.24mm
长度	10.11mm	包装方式	Bulk
壳体颜色	黑色	导线线规	20-32 AWG
方向	直	排间距	0.100" (2.54mm)
端接方式	12 mΩ	触头类型	Female Socket
第二连接器	Without	安装类型	Straight
连接器类型	Receptacle	安装样式	Wire
排数	2	高度（英寸）	.198
壳体材料	Thermoplastic	总长度	.398
包装数量	1	面板安装类型	不带
主要材料	InterconnectSystem	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	8
接触件端接	Crimp	位数	8
兼容外壳尺寸（如TM-700等）	接触件	安装孔直径	不带
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
制造商全称	AMPMODU	产品子类型	Receptacles / Sockets - Housings
适用产品/相关产品	.100 AMPMODU 管座、外壳和触点

环境参数

工作温度

- 65 C to + 105 C
