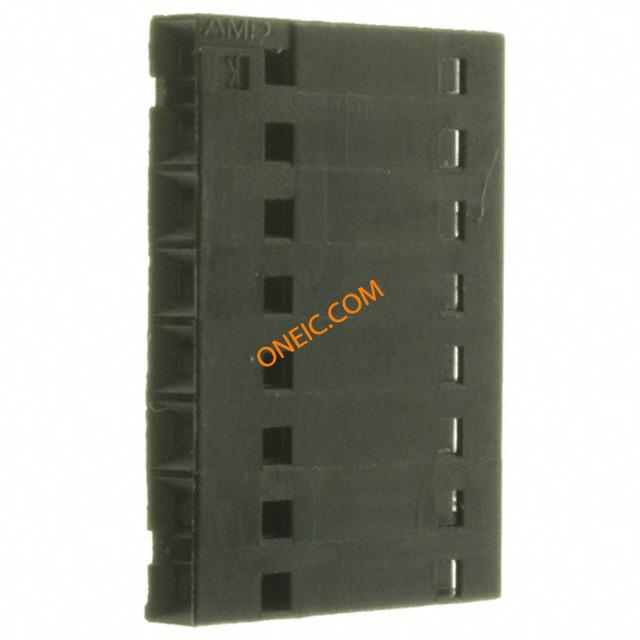

103688-7

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 8POS .1" UNLOAD Headers & Wire Housings HSG REC 2X04C STD Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 MTE RCPT HSG SR PLAIN .100
分类	光电子学LED照明LED照明模块

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-0

电气参数

供电电压	600 VAC	输入电阻	5000
连接器阻抗	刺破式压接 (IDC), 压接	最大额定电流	3/Contact A
保护额定电压（VPR）	600 V

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	2.48 mm
长度	2.03 mm [ .798 in ]	锁定类型	不带
包装方式	Bulk	壳体颜色	黑色
导线线规	22-30 AWG	排间距	2.54 mm
触头类型	Female Socket	第二连接器	Without
外壳颜色	Black	安装类型	Straight
连接器类型	Crimp, Insulation Displacement Crimp (IDC)	安装样式	不带
排数	1	封装形式	Receptacle
插入件材料	磷青铜	壳体材料	Thermoplastic
总长度	20.26 mm	包装数量	1
面板安装类型	不带	端接样式	Crimp
第一触头极性	Socket (Female)	配接方向	Without
触点数	8	接触件端接	Crimp
位数	8	兼容外壳尺寸（如TM-700等）	压接扣入式接触件
安装孔直径	不带	中心触点材料	2.54 [.100]
典型触点布局	同轴	静电放电屏蔽	不带

产品信息

备注	Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta	类型	Housing
连接器性别	RCP	系列	MTE
预加载	No	编码、键控	No
产品子类型	Housing

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-65C to 105C

文档与媒体

在线文档

103688-7?RQPN=103688-7
