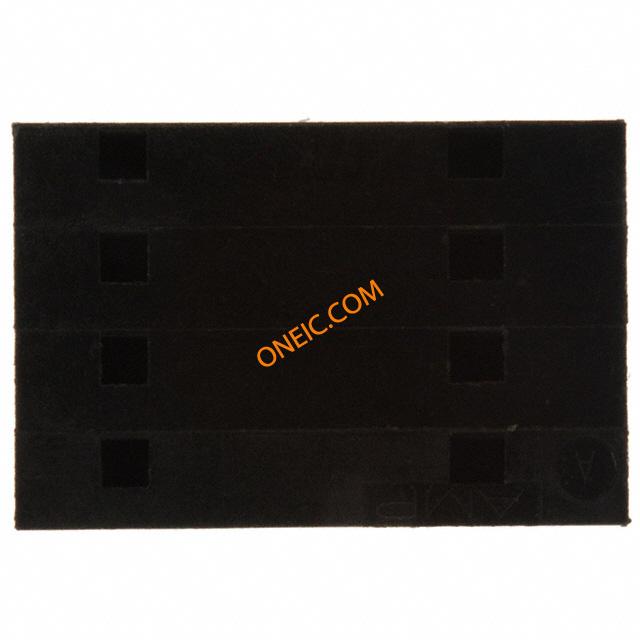

103688-3

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 4POS .1" UNLOAD Headers & Wire Housings HSG REC 1X04C STD Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) 04 MTE RCPT HSG SR PLAIN .100
分类	光电子学LED照明LED照明模块

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准	RoHSCompliant,ELVCompliant
无铅定义	Not relevant for lead free process	认证机构	CSA,UL
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-0

电气参数

供电电压	600 VAC	输入电阻	5000
连接器阻抗	刺破式压接 (IDC), 压接	最大额定电流	3 A
保护额定电压（VPR）	600 VAC

机械参数

颜色	Black	间距	2.54 mm
高度	2.5 mm [ .098 in ]	长度	10.1 mm [ .398 in ]
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	导线线规	22-30 AWG
排间距	2.54 mm	外壳样式	Receptacle
端接方式	IDC	触头类型	Female Socket
第二连接器	Without	外壳颜色	Black
安装类型	Straight	行程角度	Straight
连接器类型	Crimp, Insulation Displacement Crimp (IDC)	安装样式	Wire
排数	1	封装形式	Receptacle
插入件材料	磷青铜	触头材料	Copper Alloy
壳体材料	Thermoplastic	总长度	0.398"
包装数量	1	面板安装类型	不带
主要材料	InterconnectSystem	插针孔直径	0.1"
端接样式	Crimp	第一触头极性	Socket (Female)
配接方向	Without	触点数	4
接触件端接	Crimp	位数	4
兼容外壳尺寸（如TM-700等）	压接扣入式接触件	安装孔直径	不带
中心触点材料	2.54 [.100]	典型触点布局	同轴
静电放电屏蔽	不带

产品信息

备注	Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta	类型	Housing
连接器性别	RCP	系列	MTE
预加载	No	编码、键控	No
制造商全称	AMPMODU/MTESeries	产品子类型	Housing
矩阵（列×行）	0.100in.

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-65to+105°C

文档与媒体

在线文档

103688-3?RQPN=103688-3

相关型号

103361-2

te connectivity / amp
