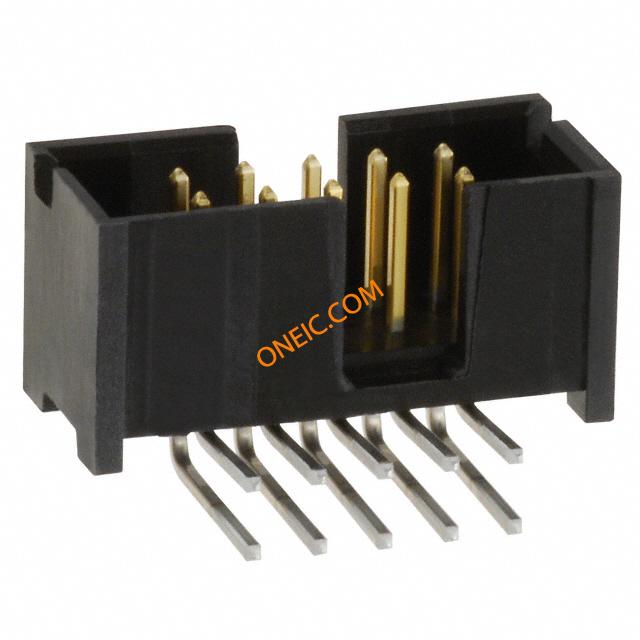

103311-1

制造商	TE Connectivity Ltd.
描述	Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings HDR R.A. DOUBLE 10P low profile Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 10POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, LO/PROHDR,010LOPROHDRRA30DP TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 010 LOPRO HDR RA 30DP
分类	连接器解决方案板对板连接器带罩排针连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMP-LATCH	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	125

合规参数

RoHS

材料阻燃等级

UL 94 V-0

电气参数

输入电阻	5000	最大额定电流	1 A
绝缘电阻	5000 MOhms	连接器类型 - 电压输入	浸焊

机械参数

颜色	Black	深度	9.77 mm
间距	2.54 mm	高度	9.14 mm
长度	20.32 mm [ .8 in ]	底座类型	不带
锁定类型	不带	包装方式	Tube
壳体颜色	黑色	引脚样式	正方形
方向	直角	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Male Pin
外壳颜色	Black	安装类型	Right
连接器类型	Header, Shrouded	接触镀层	Gold Over Palladium Nickel Over Nickel\|Gold Over Nickel
法兰特征	是	安装样式	Through Hole
排数	2	外壳材料（壳体）	4 面
驱动力	不带	插入件材料	铜合金
触头材料	Copper Alloy	壳体材料	Thermoplastic
总长度	20.32 mm	包装数量	35
面板安装类型	通孔 - 焊接	端接排数	焊接
端接样式	Solder	第一连接器类型	插针接头
第一触头极性	Pin (Male)	外径	.64 mm [ .025 in ]
触点数	10	位数	10
触头长度-柱	信号（数据）	安装孔直径	带有
接触件表面处理 - 配合	钯镍打底镀薄金	接触长度 - 配合	0.240" (6.10mm)
端子柱长度	3.43 mm	接触镀层厚度	30µin (0.76µm)
外壳尺寸，连接器布局	3.81 mm [ .15 in ]

产品信息

类型	Shrouded Header	连接器性别	HDR
系列	AMP-LATCH	覆盖范围	覆盖
极性	带有	产品子类型	Headers - Shrouded
DigiKey可编程	带有	加载位置数	All

环境参数

测试温度

标准

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

103311-1

相关型号

102387-1

te connectivity / amp
