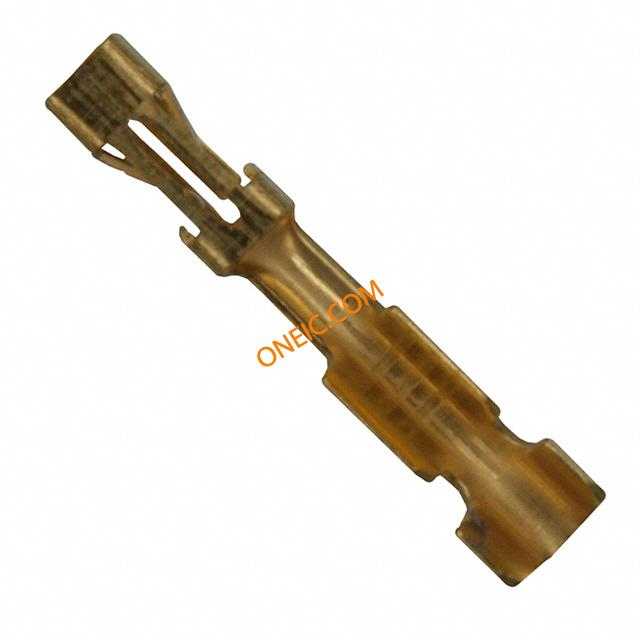

102548-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 22-26AWG 30AU CRIMP Headers & Wire Housings SKT TERMINAL REEL Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 26-22AWG, CRIMP MOD IV RECP PLTD 30 SEL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 12500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 VAC | 接触电阻 | 12 mohm |
| 最大额定电流 | 3 A | 最小供电电压 | 250VAC |
机械参数
| 深度 | 2.03 mm | 间距 | Not Required mm |
| 高度 | 2.03 mm | 重量 | 0 |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Beryllium Copper | 壳体材料 | Not Required |
| 总长度 | 11.6 mm | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | :26AWG | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | AMPMODU MOD IV | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Mod IV.v Series Connectors | ||
环境参数
| 工作温度 | - 65 C to + 105 C | ||
