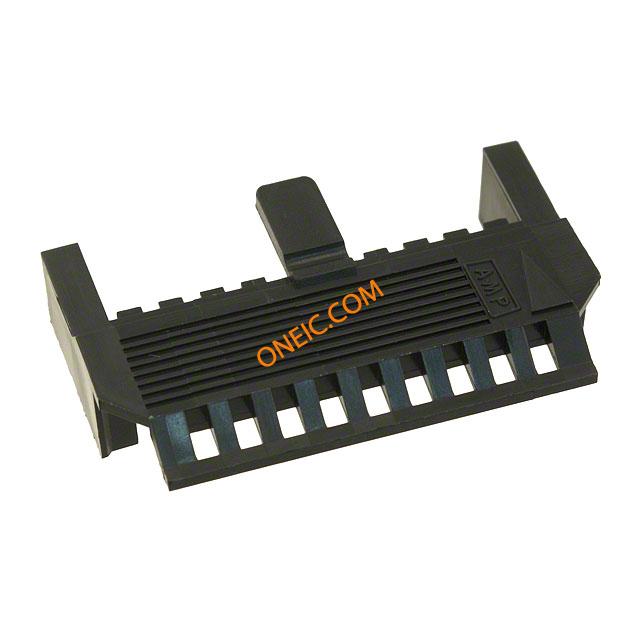

点击放大查看
102537-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 20 POS Ejection Cover Thermoplastic Black .100 AMPMODU Headers, Housings & Contacts CONN COVER FRONT 20POS MT .100 Cover,Ejection,20,Front,Low,Thermoplast Cover; Ejection; 20; Front; Low; Thermoplastic; Black; Yes Headers & Wire Housings HSG ACC 2X10C FRT CVR EJE Connector Accessories 20 POS Ejection Cover Thermoplastic Black Product Highlights:AccessoryAccessory Type = CoverNumber of Positions = 20Cover Type = EjectionCover Side = FrontSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Cover;Ejection;20;Front;Low;Thermoplastic;Black;Yes 20 AMPMODU MT COVER DR .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | 1025378 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | Yes | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm [ .100 in ] |
| 材料（通用） | Thermoplastic | 包装方式 | Bulk |
| 外壳样式 | 弹射 | 端接方式 | Crimp |
| 触点尺寸 | Front | 柱间距 | 2.54 [.100] |
| 安装样式 | 低 | 排数 | 2 |
| 外形（宽 x 高） | Low | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 主要材料 | InterconnectSystem |
| 触点数 | 20 | 位数 | 20 |
| 兼容外壳尺寸（如TM-700等） | 双排母端组件 | ||
产品信息
| 类型 | Cover | 连接器性别 | Female |
| 系列 | MT | 覆盖范围 | Front |
| 盖类型 | Ejection | 制造商全称 | AMP |
| 产品子类型 | Accessory | 附件类型 | Cap (Cover), Front |
| 射频系列/标准 | 102537 | 适用产品/相关产品 | Double Row Receptacle Assemblies |
环境参数
| 工作温度 | +105°C | ||
