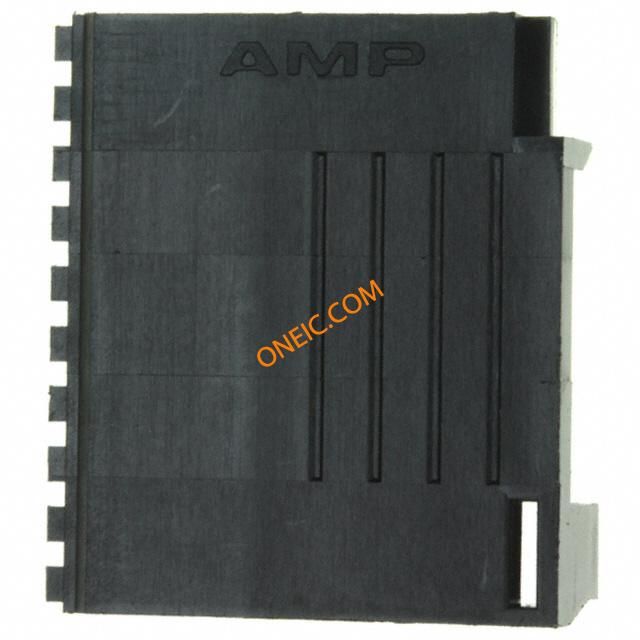

点击放大查看
102396-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 20 POS Cover Thermoplastic Black .100 AMPMODU Headers, Housings & Contacts CONN COVER 20POS 2PCS REQD/1 COV Connector Accessories 20 POS Cover Thermoplastic Black Product Highlights:AccessoryAccessory Type = CoverNumber of Positions = 20Cover Type = HermaphroditicStandard ProfileSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 20 AMPMODU MT COVER DR .100CL |
| 分类 |
商业参数
| 其他名称 | A3069 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | Yes |
机械参数
| 颜色 | 黑色 | 间距 | 2.54 mm [ .100 in ] |
| 高度 | 7.49 mm | 材料（通用） | Thermoplastic |
| 外壳样式 | 无极性 | 安装样式 | 标准 |
| 排数 | 2 | 外形（宽 x 高） | Standard |
| 总长度 | 25.4 mm | 主要材料 | 热塑性 |
| 位数 | 20 | 兼容外壳尺寸（如TM-700等） | 双排母端组件 |
| 中心触点材料 | 2.54 [.100] | ||
产品信息
| 类型 | Cover | 系列 | MT |
| 产品特性 | 2 Required Per Connector | 盖类型 | Hermaphroditic |
| 制造商全称 | AMP | 产品子类型 | Accessory |
| 附件类型 | Cap (Cover) | 射频系列/标准 | 102396 |
| 适用产品/相关产品 | Double Row Receptacle Assemblies | ||
环境参数
| 工作温度 | -65C to 105C | ||
