点击放大查看

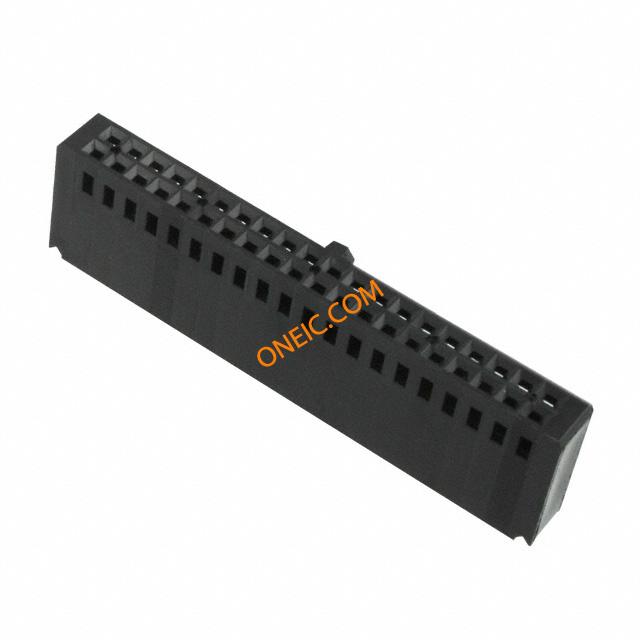

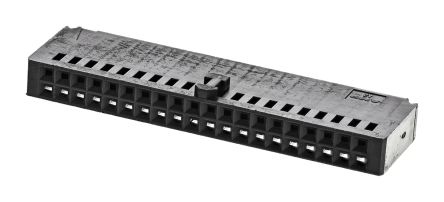

102387-9

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 40 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 40POS .100 POL DUAL Housing FH 40way 2row Rec 2.54mm AmpModu Headers & Wire Housings CNTR PLRZD HG 40 DBL Conn Housing RCP 40 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 40Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR, IDC Housing,Connector;ModIV;Dual;40;250VAC;3A;750VNo Crimp housing Pitch2.54 mm Poles 40 Double row / straight / with polarization AMPMODU MOD IV, 102387-9, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 40 路直母电缆安装 PCB 壳体 40 MODIV HSG COMP DR .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULListed,CSACertified,RoHSCompliant,ELVCompliant
海关税号	85369010	认证机构	CSA,UL

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
击穿电压	750V	最大额定电流	3 A
绝缘电阻	5000Megohms	最小供电电压	250VAC

机械参数

颜色	Black	深度	15.24mm
间距	2.54 mm	宽度	7.23mm
高度	7.23 mm	长度	55.37mm
重量	0.004	包装方式	Bulk
导线线规	22-30 AWG	排间距	0.100" (2.54mm)
端接方式	:Crimp	触头类型	Female Socket
引脚间距	:2.54mm	极化	Yes
外壳颜色	Black	安装类型	Straight
行程角度	Straight	连接器类型	Receptacle
接触镀层	:-	排数	2
触头材料	:-	壳体材料	Thermoplastic
总长度	55.37 mm	主要材料	InterconnectSystem
连接器 - 电缆	No	插针孔直径	0.1"
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	40	接触件端接	Crimp
位数	40

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	Mod IV
产品特性	Polarizing Key	制造商全称	AMPMODU/MODIVSeries
产品子类型	Receptacles / Sockets - Housings	矩阵（列×行）	0.100x0.100in.
适用产品/相关产品	Centerline Double-Row Connector

环境参数

工作温度

- 65 C to + 105 C
