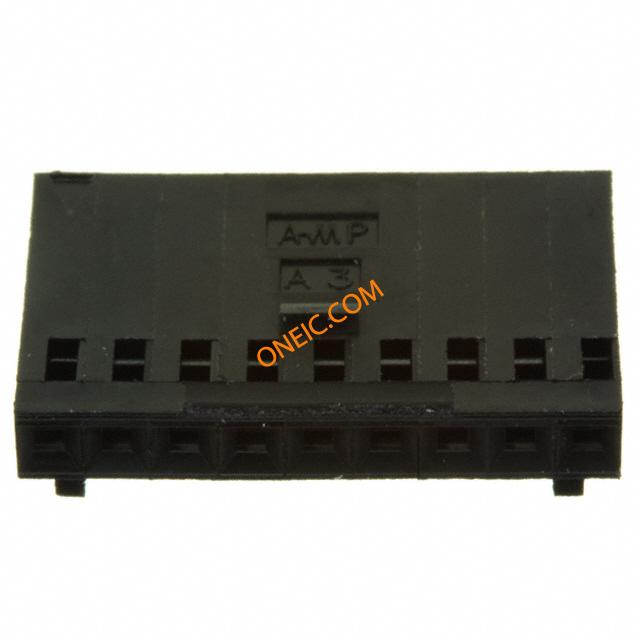

102241-7

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 9 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 9POS .100 POLAR RECEPTACLE, AMPMODU, MOD IV, 9 POSITION Headers & Wire Housings POLARIZED HSG 9 SNGL detent latching Conn Housing RCP 9 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 9Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR, RECEPTACLE, 2.54MM, 9WAY RECEPTACLE,AMPMODU,MODIV,9POSITION,.100IN,SINGLEROW,LATCHED 09 MODIV HSG COMP SR .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Contains lead / RoHS non-compliant

海关税号

85369010

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
开关功能	Detent Latching	最大额定电流	3 A

机械参数

颜色	Black	间距	2.54 mm
重量	0.00001	包装方式	Bulk
导线线规	20-32 AWG	触头类型	Female Socket
安装类型	Straight	连接器类型	Receptacle
接触镀层	:-	紧固类型	Locking Ramp
排数	1	触头材料	:-
壳体材料	Nylon	主要材料	InterconnectSystem
触点数	9	接触件端接	Crimp
位数	9

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU/MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Wire Housings

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

580372.pdf

在线文档

102241-7?RQPN=102241-7

相关型号

102202-6

te connectivity / amp

Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 9POS 15AU Headers & Wire Housings 9P SHROUDED HEADER 160 09 MODII HDR SRST SHRD .100CL

¥14.3534

详情

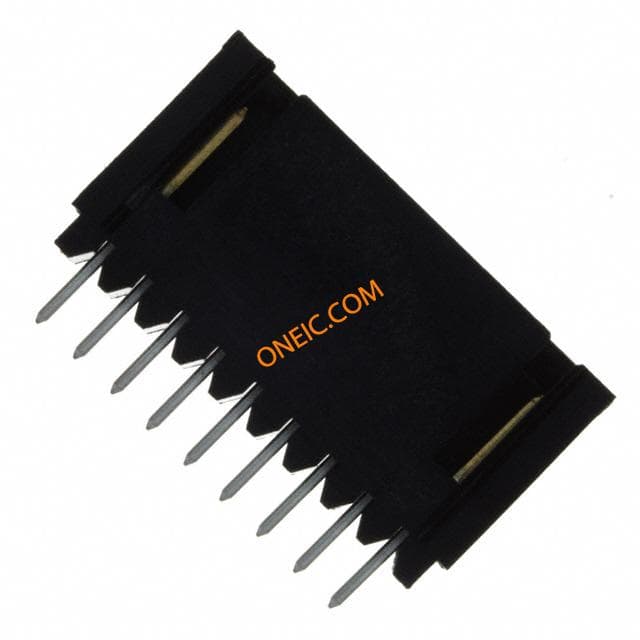

5-102202-6
