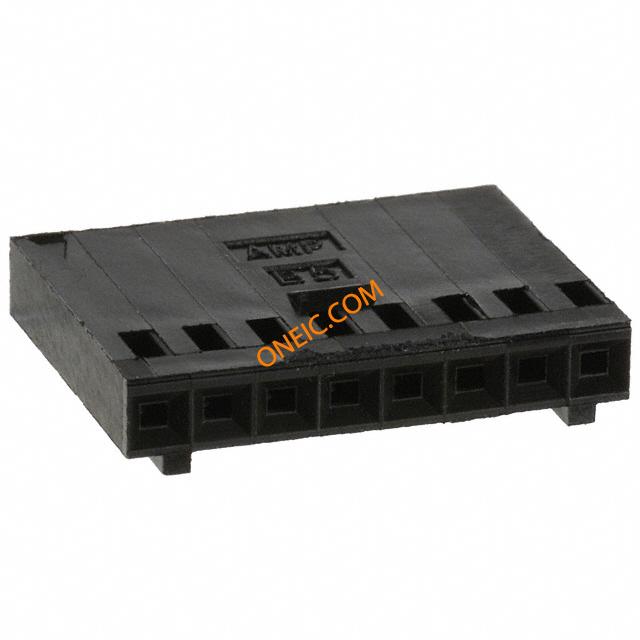

102241-6

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 8POS .100 POLAR 2.54mm,housing,8W,Mod IV,SR,snap in Headers & Wire Housings POLARIZED HSG 8 SNGL detent latching Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 8WAY Housing,Connector;ModIV;Single;8;250VAC;3A;750VYes Crimp housing Pitch2.54 mm Poles 8 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-6, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 8 路直母电缆安装 PCB 壳体 08 MODIV HSG COMP SR .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULListed,CSACertified,RoHSCompliant,ELVCompliant
海关税号	85369010	认证机构	:CSA, UL

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
开关功能	Detent Latching	击穿电压	750V
最大额定电流	3 A	绝缘电阻	:500Mohm
最小供电电压	250VAC

机械参数

颜色	Black	深度	15.24mm
间距	2.54 mm	宽度	4.62mm
高度	4.62 mm	长度	20.32mm
重量	0.076	包装方式	Bulk
导线线规	20-32 AWG	端接方式	:Crimp
触头类型	Female Socket	极化	Yes
外壳颜色	Black	安装类型	Straight
行程角度	Straight	连接器类型	Receptacle
接触镀层	:Gold	紧固类型	Locking Ramp
排数	1	封装形式	:Black Thermoplastic UL94V-0
触头材料	:Beryllium Copper	壳体材料	Nylon
总长度	20.32 mm	主要材料	InterconnectSystem
插针孔直径	0.1"	触点数	8
接触件端接	Crimp	位数	8
第一连接器安装类型	:PCB

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	Mod IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Wire Housings
矩阵（列×行）	0.1in.	适用产品/相关产品	Centerline Single-Row Connector
