点击放大查看

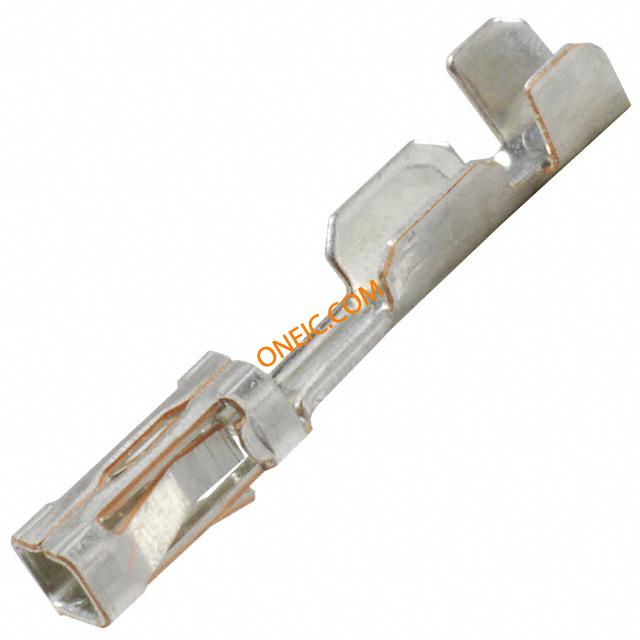

102128-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 22-26AWG TIN CRIMP Crimp connector,rcpt,Mod V,snap-in,Sn Headers & Wire Housings RECPT CONTACT 26-22 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 26-22AWG Contact;ModV;26-22AWG;Crimp;250;3A;750V;-65degC;105degC;0.061in. TE Connectivity AMPMODU MOD V 系列 母 压接接线端子, 压接, 镀锡触点 MOD V RECP LP |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | ULListed,CSACertified,RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 250 VAC | 接触电阻 | 12mΩ |
| 击穿电压 | 750V | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000Megohms | ||
机械参数
| 高度 | :11.3mm | 长度 | :11.3mm |
| 重量 | 0.0002 | 包装方式 | Bulk |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Bright Tin |
| 触头材料 | Phosphor Bronze | 总长度 | 26to22AWG |
| 导线端接方式 | Crimp | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 触点镀层 | BrightTin | 接触镀层厚度 | 50µin (1.27µm) |
| 线规或范围 - AWG | :26AWG | 线规或范围 - mm² | :0.4mm² |
| 护套（绝缘）厚度 | 0.061in. | 外径-未扩张 | :0.64mm |
产品信息
| 连接器性别 | SKT | 系列 | Mod V |
| CAD图纸 | 3D CAD Model | 产品子类型 | Contacts |
| 适用产品/相关产品 | :0.1 AMPMODU Headers, Housings | ||
环境参数
| 工作温度 | +105°C | 结工作温度 | 105°C |
