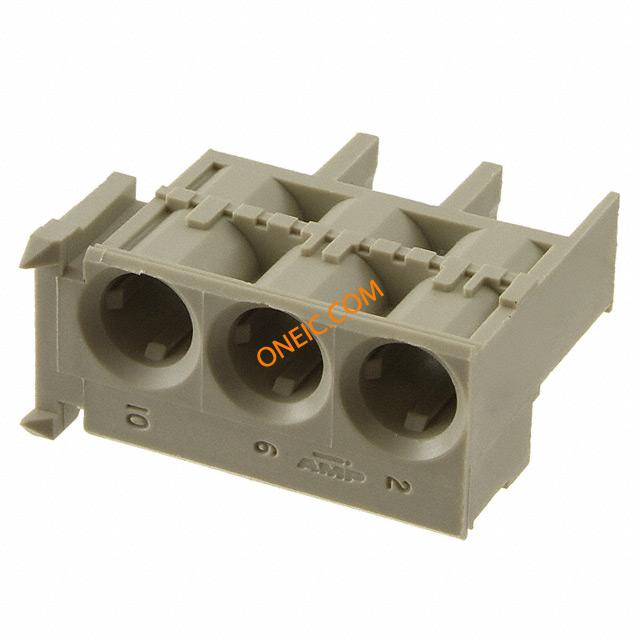

点击放大查看
100752-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS 7.5mm Crimp ST Cable Mount 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Hard Metric Connectors 2MM HYBRID FEMALE Conn Housing RCP 3 POS 7.5mm Crimp ST Cable Mount Product Highlights:HousingConnector Type = Type NReceptacleInterface Type = 2mm HMContact Type = DINSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONN HSNG RCPT R/A 2MM HM TYPE N |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 22 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | 2mm HM | ||
机械参数
| 颜色 | Gray | 深度 | 21.8 mm |
| 间距 | 7.5 mm | 包装方式 | Tray |
| 屏蔽类型 | No | 触头类型 | DIN |
| 极化 | Guide Lugs | 外壳颜色 | Gray |
| 安装类型 | Straight | 连接器类型 | Type N |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 排数 | 1 | 连接器样式 | Hard Metric, Type N |
| 连接器用途 | Receptacle | 壳体材料 | Polyester GF |
| 总长度 | 25.00 [0.984] | 配接方向 | With |
| 触点数 | 3 | 位数 | 3 (Fiber Optics or Power) |
产品信息
| 备注 | This module type is used only at one end of stacked connector modules | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Z-Pack |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 核心数 | 3 | 模块/板类型 | No |
