点击放大查看

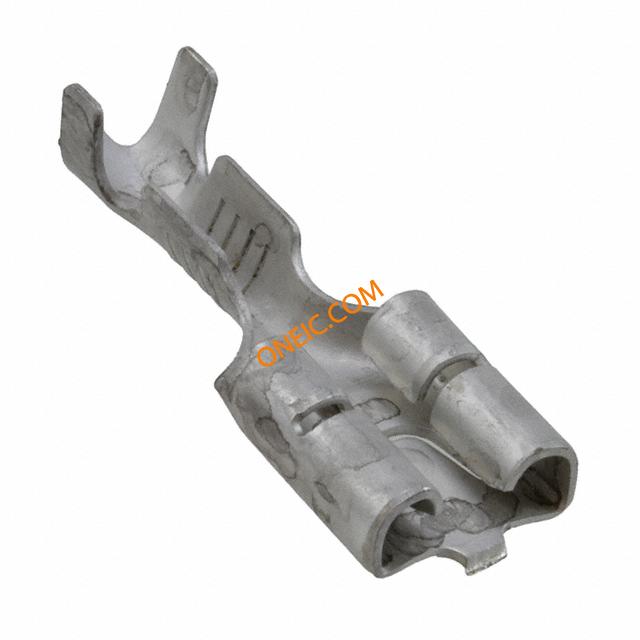

100495-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 15-20AWG RCP 19.1mm 7.6mm Tin Strip Terminals RECPT 6.35 x 0.81 mm FASTON Uninsulated Receptacles & Housings CONN UNINS RECPT 15-20AWG 0.250 Receptacle terminal,FASTON 250,AWG 20-15 Quick Disconnect Terminal 15-20AWG RCP 19.1mm 7.6mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TERMINAL, FASTON, 6.35X0.81MM Receptacleterminal,FASTON250,AWG20-15 TE Connectivity FASTON .250 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 FASTON 250 REC 0.5-1.5MM2 0.4 ELCTROTPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107148CT |
| 产品类别 | Terminals | 标准包装数量 | 6,000 |
| 工厂包装数量 | 12000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 表面处理 | Tin | 长度 | 19.1mm |
| 重量 | 0.004 | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 电缆类型 | Stranded | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.303" (7.70mm) | 导线线规 | 15-20 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | :6.35mm x 0.81mm | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | Quick Disconnect Terminal |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 箔压接区域 | F-Crimp | 插入力 | Low |
| 触头材料 | Brass | 绝缘颜色 | :- |
| 总长度 | FASTON .250 | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 绝缘直径 | 2.30-3.30 [.091-.129] |
| 绝缘材料 - 材质 | :- | 线规或范围 - AWG | :20AWG |
| 线规或范围 - mm² | 0.50-1.50² [20-15.5] | 第二连接器安装特性 | No |
产品信息
| 备注 | Can replace FASTON receptacle base p/n 160432. | 类型 | Receptacle, Faston |
| 连接器性别 | Female | 系列 | 250 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
