100161-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Hard Metric RCP 55 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RECEPT 55POS RTANG GOLD 2MM Z-Pack,Receptacle,Type C,r/a,55way Hard Metric Connectors Z-PACK/C F-HDR 55P Conn Hard Metric RCP 55 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type CReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR,RECEPTACLE,Z-PACK2MMHARDMETRIC,55POSITION,TYPEC Z-PACK/C F-HDR 55P |
| 分类 |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 22 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 数据速率（最大） | ≤1 |
| 接触电阻 | 20 mohm | 最大额定电流 | 1.5A |
| 最小供电电压 | 500VAC | ||
机械参数
| 深度 | 21.8 mm | 间距 | 2 mm |
| 高度 | 12.25 mm | 长度 | 25 |
| 包装方式 | Tube | 屏蔽 | 否 |
| 壳体颜色 | 灰色 | 屏蔽类型 | No |
| 端接方式 | Solder | 触头类型 | Short Tail |
| 极化 | Guide Lugs | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type C |
| 接触镀层 | Gold Over Nickel | 触点时序 | 否 |
| 安装样式 | Through Hole | 排数 | 5 |
| 端子样式 | ACTION PIN, 信号 | 连接器样式 | C 11 |
| 连接器用途 | Daughtercard | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | PBT - GF |
| 总长度 | 25.00 [0.984] | 包装数量 | 22 |
| 面板安装类型 | 直角 | 端接样式 | Press Fit |
| 配接方向 | With | 触点数 | 55 |
| 端接表面处理 | Tin-Lead over Nickel | 位数 | 55 |
| 柱体长度（配合） | 3.71 [0.146] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 制造商 | 3.7 | 类型 | Hard Metric |
| 连接器性别 | Receptacle | 系列 | Z-Pack |
| 卡类型 | 无 | 制造商全称 | AMP |
| 产品子类型 | Connector | 控制器系列 | 否 |
| 模块/板类型 | No | 列数 | 11 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号

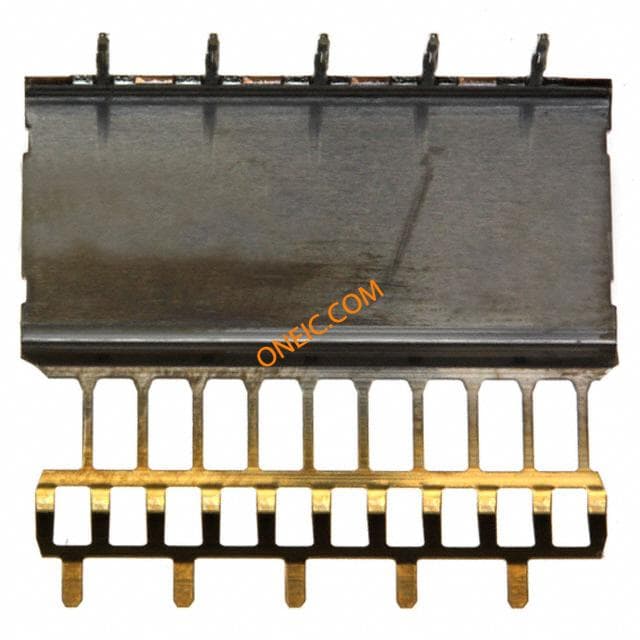

352112-2
