1-968968-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 7mm ST Loose Piece Automotive Connectors 2 5MM BU-GEH ASSY4P CONN PLUG HSING SKT 4POS CRIMP Conn Housing RCP 4 POS 7mm ST Loose Piece Product Highlights:HousingProduct Series = 2.5 mm SystemHousing Accepts Contact Type = SocketCircular Contact Layout4 Positions 2,5MM BU-GEH ASSY4P |
| 分类 |
商业参数
| 产品 | Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94-HB |
电气参数
| 连接器阻抗 | 否 | ||
机械参数
| 颜色 | Orange | 间距 | 7 mm |
| 高度 | 32.9 mm [ 1.295 in ] | 长度 | 31 mm [ 1.22 in ] |
| 包装方式 | Bulk | 出线方向 | 否 |
| 方向 | A | 触点尺寸 | 2.5mm |
| 触头类型 | Crimp | 安装类型 | Straight |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 排数 | 2 | 端子样式 | Yes |
| 连接器用途 | 1 | 锁定特性 | On the terminal |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 安装特性 | No |
| 包装数量 | 500 | 主要材料 | 其他 |
| 连接器 - 电缆 | No | 触点数 | 4 |
| 位数 | 4 | 外壳材料及表面处理 | Polybutylene Terephthalate (PBT) |
| 法兰上方插针尺寸 | 2.5 mm [ .098 in ] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Locking Latch |
| 极性 | 否 | 可密封 | 是 |
| 可维修 | No | ||
环境参数
| 机械寿命 | New At Mouser | 工作温度 | -40 – 120 °C [ -40 – 248 °F ] |
相关型号
1-967402-2
te connectivity / amp
Conn Housing PL 4 POS Crimp ST Loose Piece Automotive Connectors PIN HOUSING 2-4P 2.5mm 1.5/2.5/4.0mm Pin Diameter Connector System CONN RCPT HSING PIN 4POS CRIMP 3 Pole Male Straight DIN Connector 1-967402-2 Conn Housing PL 4 POS Crimp ST Loose Piece Product Highlights:Product Series = 2.5 mm SystemHousingPinCircular Contact LayoutNumber of Positions = 4 3wayDIN72585IP67cableplug,30A Connector: circular; 2.5mm System; plug; male; PIN:3 TE Connectivity 3路 直向 Din 插头 插头 面板安装 2,5MM ST-GEH KPL 3P
929975-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 1.5/2.5/4.0mm Pin Diameter Connector System CONTACT SKT CRIMP 13-17AWG 2.5MM Female Circular Connector Contact, Crimp,Wire size 17 to 13AWG Automotive Connectors BU-KONTAKT 2 5MMD Contact SKT Crimp ST Cable Mount Strip Product Highlights:Product Series = 2.5 mm SystemContactSocketCuNiSi Contact MaterialPre-Tin Contact Mating Area PlatingSearch Keywords:DIN 72585, highly stressed, truck, Magnet valves, sensors, ABS, rear lights CONTACT, SOCKET, 17-13 AWG, CRIMP CONTACT, CRIMP, SOCKET, 17-13AWG, REEL 2.5mmcrimpsocketcontact,1-2.5sq.mm TE Connectivity 母 压接端接 圆形 连接器 触芯, 使用于2.5mm 引脚直径连接器系统, 17 → 13 AWG 线规格 BU-KONTAKT 2,5MMD
1-967402-3
te connectivity / amp
Conn Housing PL 4 POS Crimp ST Loose Piece Automotive Connectors 2,5MM ST-GEH KPL 2P 1.5/2.5/4.0mm Pin Diameter Connector System CONN RCPT HSING PIN 4POS CRIMP 2 Pole Male Straight DIN Connector 1-967402-3 Conn Housing PL 4 POS Crimp ST Loose Piece Product Highlights:Product Series = 2.5 mm SystemHousingPinCircular Contact LayoutNumber of Positions = 4 PIN HOUSING, 2WAY 2wayDIN72585IP67cableplug,30A Connector: circular; 2.5mm System; plug; male; PIN:2 TE Connectivity 2路 直向 Din 插头 插头 2,5MM ST-GEH KPL 2P
2-967402-1
te connectivity / amp
Conn Circular PIN 4 POS ST 4 Terminal 1 Port Loose Piece Automotive Connectors 2,5MM ST-GH ASSY 4P CONN RCPT HSING PIN 4POS CRIMP 1.5/2.5/4.0mm Pin Diameter Connector System 1.5/2.5/4.0mm Pin Diameter Connector System Product Highlights:Product Series = 2.5 mm SystemHousingPinCircular Contact LayoutNumber of Positions = 4 2,5MM ST-GH ASSY 4P

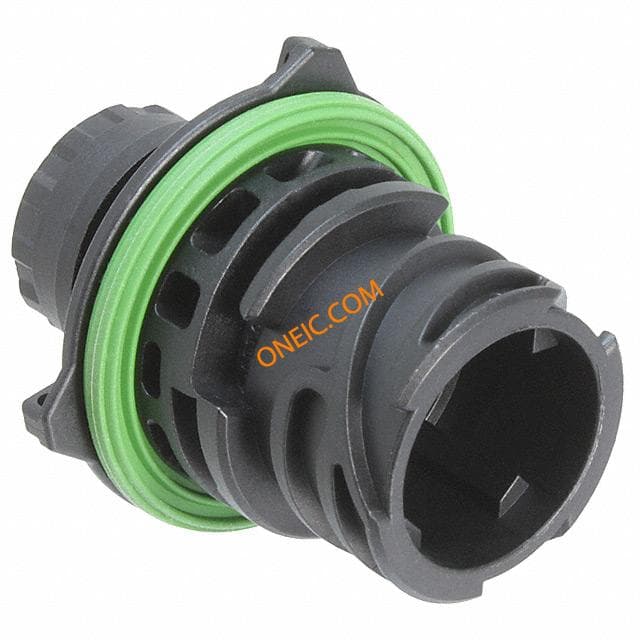

1-967402-1
