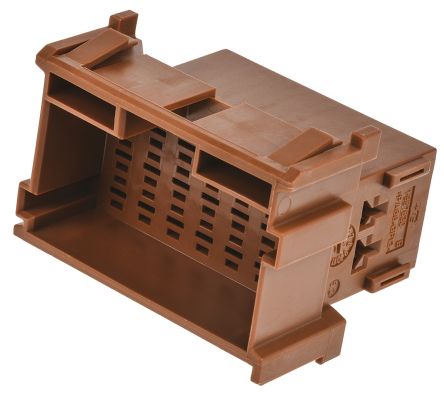

点击放大查看
1-967630-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 21 POS 5mm Crimp ST Cable Mount Timer Connectors FLA STEGEHZ Junior Power Timer 2.8 21W plug housing Automotive Connectors FLA STEGEHZ Conn Housing PL 21 POS 5mm Crimp ST Cable Mount Product Highlights:Tab HousingConnector Type = Junior Power TimerTab Fit = 2.79 x 0.81 mmNumber of Positions = 21Housing Color = BrownSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, 2.8MM, 21WAY JuniorPowerTimer2.821Wplughousing TE Connectivity Timer 系列 3行 21路 电缆安装 棕色 公 外壳 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 600 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 量程（°/s） | :- | ||
机械参数
| 颜色 | Brown | 深度 | 35.5mm |
| 间距 | 5 mm | 宽度 | 42.5mm |
| 重量 | 0.004 | 包装方式 | Bulk |
| 插片宽度 | 2.79 x 0.81 [.110 x .032] | 排间距 | 0.217" (5.51mm) |
| 触头类型 | Tab | 引脚间距 | :5mm |
| 外壳颜色 | Brown | 安装类型 | Straight |
| 连接器类型 | Junior Power Timer | 接触镀层 | :- |
| 安装样式 | Wire | 排数 | 3 |
| 壳体材料 | PA 6.6 GF 13% | 总长度 | 5.00 [0.197] |
| 主要材料 | Connector | 端接样式 | Crimp |
| 连接器颜色 | Brown | 触点数 | 21 |
| 接触件端接 | Crimp | 位数 | 21 |
产品信息
| 备注 | With Secondary Locking | 类型 | Housing |
| 连接器性别 | PL | 系列 | Timer |
| 产品子类型 | Tab Housing | ||
