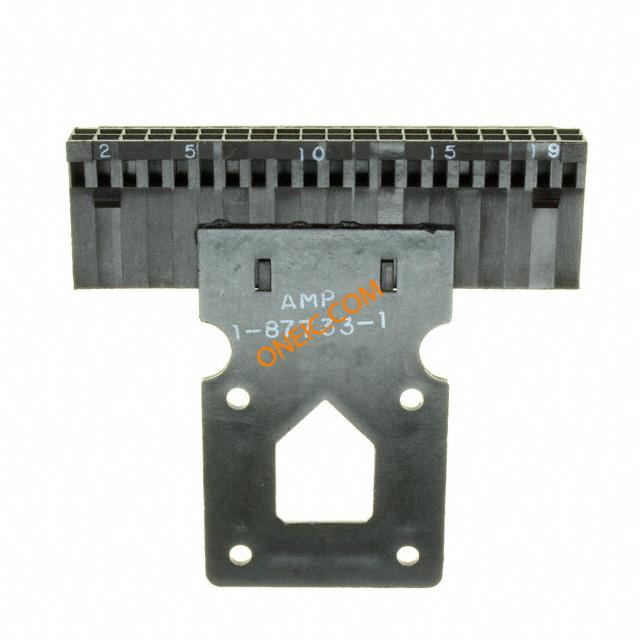

1-87733-1

点击放大查看

1-87733-1

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 40 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 40POS .100 POL W/STR Headers & Wire Housings 40 MODIV HSG W/STR R .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 40Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 40 MODIV HSG W/STR RLF DR MRKD
分类
连接器解决方案矩形连接器FPC/FFC矩形连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU标准包装规格50
产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94V-0

电气参数

额定电压250 VAC开关功能Detent Latching
供电电压250 VAC接触电阻12 mΩ
输入电阻5000连接器阻抗压接
最大额定电流3 A保护额定电压（VPR）750 V

机械参数

颜色Black间距2.54 mm
高度6.1 mm [ .24 in ]长度50.8 mm [ 2 in ]
锁定类型带有包装方式Bulk
壳体颜色黑色导线线规20-32 AWG
排间距0.100" (2.54mm)触头类型Male or Female
安装类型Straight连接器类型Receptacle
紧固类型Locking Ramp排数2
插入件材料磷青铜壳体材料Thermoplastic
包装数量50端接样式Through Hole
第一触头极性Socket (Female)触点数40
接触件端接Crimp位数40
安装孔直径带有静电放电屏蔽带有

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列AMPMODU MOD IV
产品特性Strain Relief产品子类型Receptacles / Sockets - Housings
抽头/步进数2其他规格是

环境参数

测试温度标准部件 - 非辉光导线工作温度- 65 C to + 105 C

文档与媒体

在线文档
1-87733-1?RQPN=1-87733-1

相关型号

6-103166-8

6-103166-8

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 30AU Headers & Wire Housings HDR 2X20P R/A T/H Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded20 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRRA SHRD LF

¥80.2782
详情
6-103168-8

6-103168-8

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 30AU Headers & Wire Housings HDR 2X20P VRT T/H Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD .100CL

¥20.5360
详情
6-102618-8

6-102618-8

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 15AU Headers & Wire Housings HDR 2X20P VRT T/H Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded40 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD .100CL

¥25.2960
详情

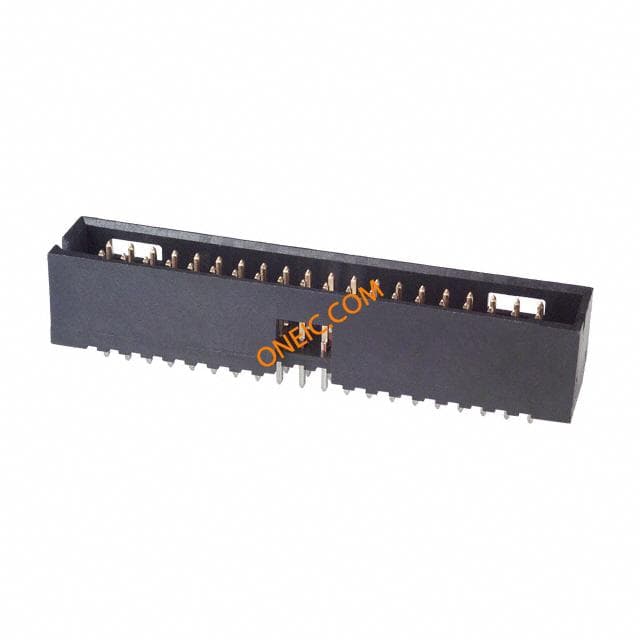

6-103169-8
