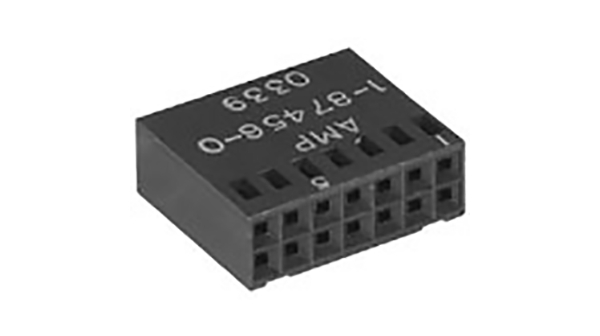

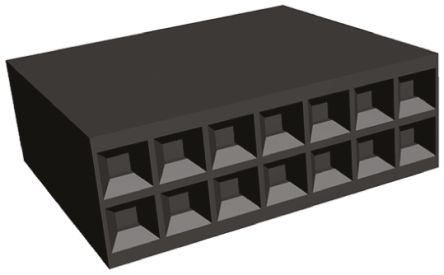

1-87456-0

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 DUAL Housing 14 way receptacle 2.54mm AmpModu Headers & Wire Housings NON-PLRZD HSG 14 DBL .705 width Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 14Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;ModIV;Dual;14;250VAC;3A;750VYes Crimp housing Pitch2.54 mm Poles 14 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 1-87456-0, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 14 路直母电缆安装 PCB 壳体 14 MODIV HSG DR MRKD .100CL
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94 V-0

电气参数

额定电压	250 VAC	极数	14
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
击穿电压	750V	最大额定电流	3A
绝缘电阻	5000 MOhms	连接器类型 - 电压输入	Receptacle
保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	6.1mm
间距	2.54 mm	宽度	15.24mm
高度	6.1 mm [ .24 in ]	长度	17.91mm
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	方向	直
排间距	0.100" (2.54mm)	端接方式	CrimpSnap-In
触头类型	Female Socket	极化	No
安装类型	Straight	行程角度	Straight
连接器类型	Receptacle	排数	2
连接器样式	Double row	插入件材料	铍铜
壳体材料	Nylon	总长度	0.705"
包装数量	1	主要材料	InterconnectSystem
连接器 - 电缆	Yes	插针孔直径	0.1"
端接样式	插座	连接器颜色	black
触点数	14	接触件端接	Crimp
位数	14	第一连接器极性	Female
安装孔直径	不带	静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	Mod IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Wire Housings
连接方式	Wire-Board	其他规格	是
应用细节	Wire-to-Board	矩阵（列×行）	0.100x0.100in.
适用产品/相关产品	PCB Connector

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

1650916.pdf

在线文档

1-87456-0?RQPN=1-87456-0

相关型号

102570-5

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 14POS 15AU Headers & Wire Housings ACTION PIN R.A. 14P dual .150 end Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRRA SHRD .100CL

¥7.4120

详情

146130-6

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 14POS DUAL SMD Headers & Wire Housings 14 CKT VERT SMT HDR Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST SMD Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST SFMNT B/A

¥6.1200

详情

146270-7

te connectivity / amp

Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 14POS DL .100 Headers & Wire Housings 14 MODII HDR DRST B/ 600 .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 14Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR DRST B/A 100 W/HD

¥2.3800

详情

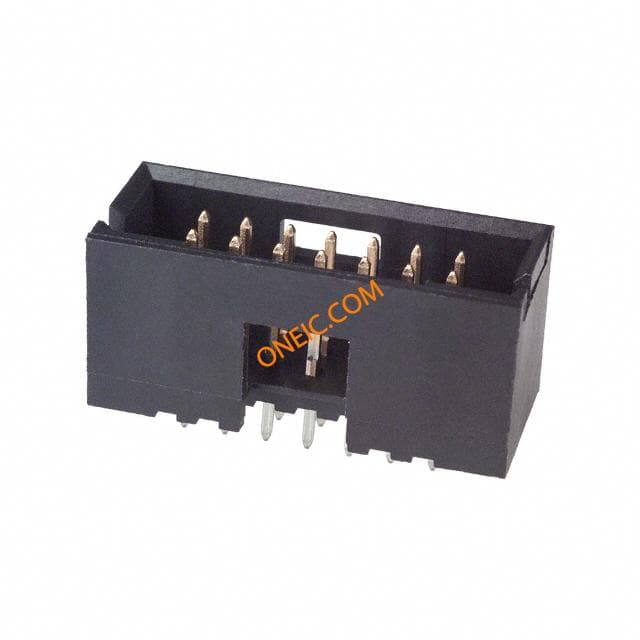

5-102619-5
