1-87348-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 14POS VERT TIN Headers & Wire Housings 14 MODII HDR SRST UNSHRD .100 Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 14 MODII HDR SRST UNSHRD .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 最大额定电流 | 3/Contact A | ||
机械参数
| 颜色 | Black | 深度 | 2.34 mm |
| 间距 | 2.54 mm | 高度 | 11.25 mm |
| 底座类型 | 带有 | 锁定类型 | 不带 |
| 包装方式 | Bulk | 引脚样式 | 正方形 |
| 稳定器 | 不带 | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54 [.100] | 第一连接器 | No |
| 第二连接器 | Without | 触点形状 | Square |
| 安装类型 | Vertical | 连接器类型 | Standard |
| 接触镀层 | Bright Tin-Lead Over Nickel | 安装样式 | Through Hole |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 35.15 mm | 安装特性 | Without |
| 包装数量 | 100 | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一连接器类型 | 不带罩 | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 触点数 | 14 |
| 端接表面处理 | 不带 | 位数 | 14 |
| 柱体长度（配合） | 8.08 mm | 安装孔直径 | 不带 |
| 接触长度 - 配合 | 8.08 [0.318] | 表面贴装焊盘尺寸 | No |
| 端子柱长度 | 3.18 [0.125] | 接触镀层厚度 | 100µin (2.54µm) |
| 静电放电屏蔽 | 不带 | 第一连接器安装特征 | 否 |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 钥匙类型 | 否 |
| 制造商全称 | AMP | 产品子类型 | Header |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 温度 | No |
| 工作温度 | -65C to 105C | 结工作温度 | 否 |
文档与媒体
相关型号

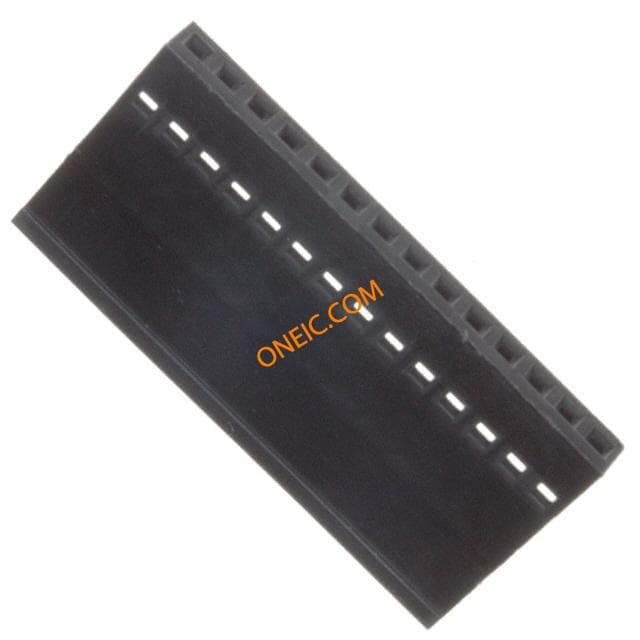

3-87175-0
