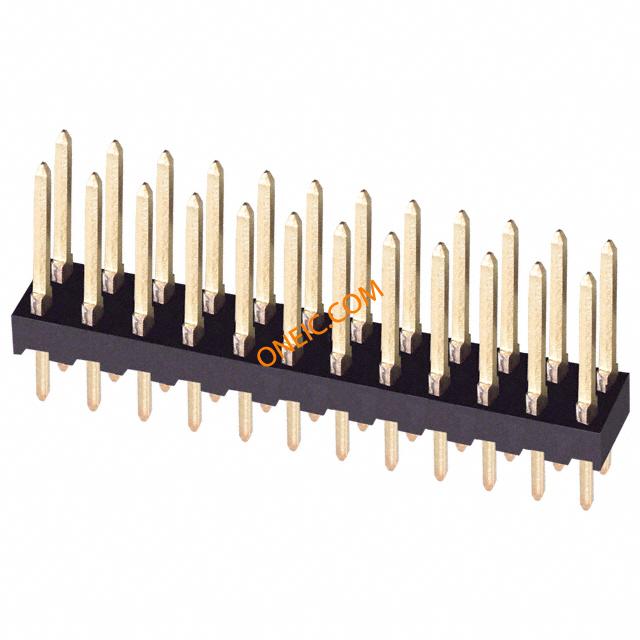

1-87227-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT 24POS .100 15AU .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 24Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 24 MODII HDR DRST UNSHRD .100 |
| 分类 |
商业参数
| 标准包装规格 | 120 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 3 | 保护额定电压（VPR） | 750 Vrms |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 不带 | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 稳定器 | 不带 |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 第一连接器 | 否 |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | 不带 |
| 排数 | 2 | 插入件材料 | 磷青铜 |
| 触头材料 | 镍打底镀金 | 壳体材料 | 热塑性 |
| 包装数量 | 120 | 面板安装类型 | 通孔 |
| 端接样式 | 插针 | 第一连接器类型 | 不带罩 |
| 外径 | .64 mm [ .025 in ] | 触点数 | 24 |
| 端接表面处理 | 不带 | 位数 | 24 |
| 安装孔直径 | 不带 | 接触长度 - 配合 | 0.318" (8.08mm) |
| 端子柱长度 | 3.18 mm [ .125 in ] | 接触镀层厚度 | 15µin (0.38µm) |
| 静电放电屏蔽 | 不带 | 第一连接器安装特征 | 否 |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 钥匙类型 | 否 | 产品子类型 | 连接器 |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 工作温度 | -65 – 105 |
| 封装热阻 | 1.397 mm [ .055 in ] | 结工作温度 | 否 |
