点击放大查看

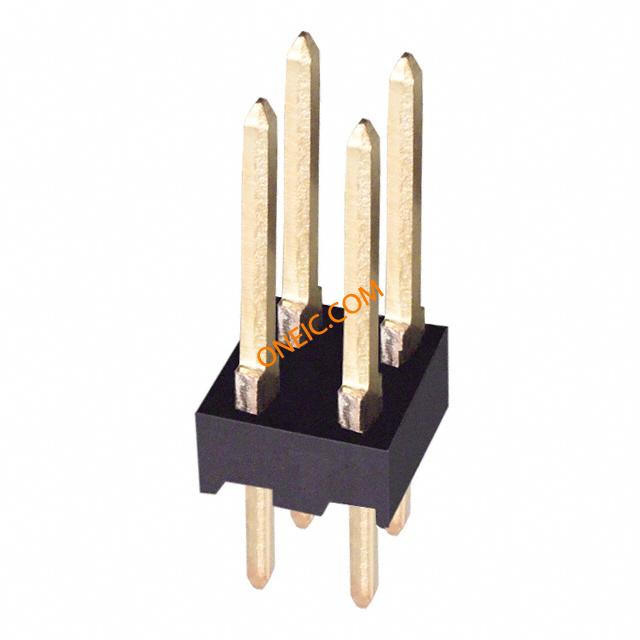

1-87215-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT 4POS .100 30AU Headers & Wire Housings UNSHRD VERT DUAL 4 Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 4Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, BOARD-BOARD CONNECTOR HEADER, 4WAY, 2ROW MODUTHRUDRHDRUNSHR,04MODIIHDRDRSTUNSHRD.100 04 MODII HDR DRST UNSHRD .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 最大额定电流 | 3 A | 绝缘电阻 | 5000 MOhms |
机械参数
| 颜色 | Black | 深度 | 4.87 mm |
| 间距 | 2.54 mm | 高度 | 10.36 mm |
| 重量 | 1 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 4.67 mm |
| 主要材料 | InterconnectSystem | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 接触件端接 | :Through Hole Vertical | 位数 | 4 |
| 柱体长度（配合） | 8.08 mm | 接触长度 - 配合 | 0.318" (8.08mm) |
| 端子柱长度 | 3.18 mm | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 制造商全称 | AMPMODU/ModIiSeries |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
