1-770873-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 3 POS 4.14mm Solder ST Thru-Hole 3 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 3POS VERT .163 TIN TE Connectivity Mini-Universal MATE-N-LOK Series 4.14mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 9.5A Headers & Wire Housings HEADER 3 POS TIN IN-LINE Conn Power HDR 3 POS 4.14mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR, HEADER, THT, 4.14MM, 3WAY HEADERVERTPCB3WAYPIN Pin header Pitch4.14 mm Poles 1 x 3 straight MATE-N-LOK Mini Universal, 1-770873-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 9.5A , 通孔 03P MINI UMNL HDR ASSY SN |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366930 | ||
电气参数
| 额定电压 | 600 V ac/dc | 开关功能 | Latched |
| 最大额定电流 | 9.5A | 最小输入电压 | 600VAC |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | White | 深度 | 6.35 mm |
| 间距 | 4.14 mm | 高度 | 14.25 mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 17.83 mm | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 接触件端接 | :Through Hole Vertical | 位数 | 3 |
| 接触镀层厚度 | 150µin (3.81µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Mini-Universal MATE-N-LOK | 产品特性 | Board Lock |
| 产品子类型 | Headers | 端口数 | 1 |
| 加载位置数 | All | ||
文档与媒体
相关型号
1-172337-9
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI-UMNL BLACK
172166-1
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI UNIV-MATE 3 way cable plug Min Mate-N-Lok Pin & Socket Connectors 3P PLUG MINI UNIV M-N-L Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR HOUSING, PLUG, 3 WAY, NYLON Connector,SoftShell;3;600VAC;Plug;In-Line;Nylon;Plug;Natural Plug; wire-board; male/female; w/o terminals; 4.14mm; PIN:3; 600V Pin housing 4.14 mm Poles 1 x 3 Single row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172166-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 1 行 4.2mm 节距 3 路 直 公 压接连接器外壳 3 CIR UNIV M-N-L PLUG
172337-1
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI-U MNL NAT Housing,plug,Mate-n-lok,3 Way,Natural Pin & Socket Connectors UNIV M-N-L HSG Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 3WAY Housing,Natural,Plug,FreeHanging/PanelMount,3Pos Pin housing Pitch4.14 mm Poles 1 x 3 Single row / Free hanging/cable mount / straight MATE-N-LOK Mini Universal, 172337-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.2mm 节距 3 路 直 公 压接连接器外壳 MINI UMNL PLUG HOUSING 3P
1-172166-9
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI-U MNL BLACK Pin & Socket Connectors MINI PLUG 3P BLK MINI UNIVERSAL M-N-L PLUG 3P MINI UNIVERSAL M-N-L PLUG 3P Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP
1-172166-6
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI-U MNL BLUE
1-172166-2
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI-U MNL RED Pin & Socket Connectors MINI 3P PLUG RED Conn Housing PL 3 POS 4.2mm Crimp ST Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP

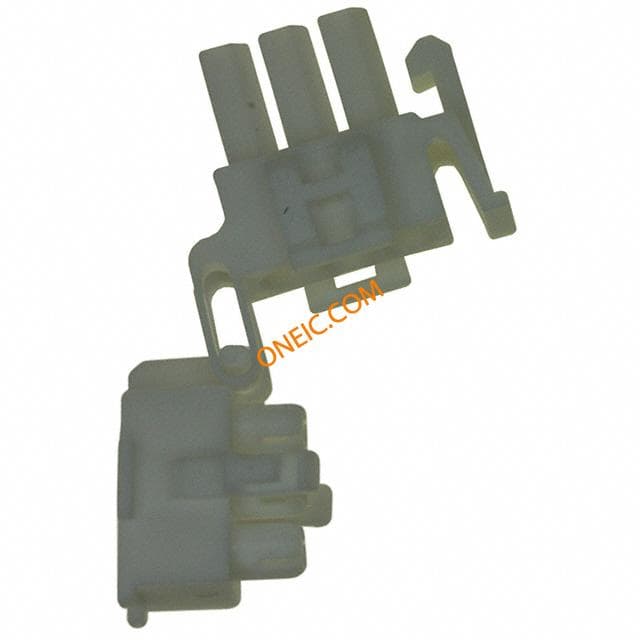

794186-1
