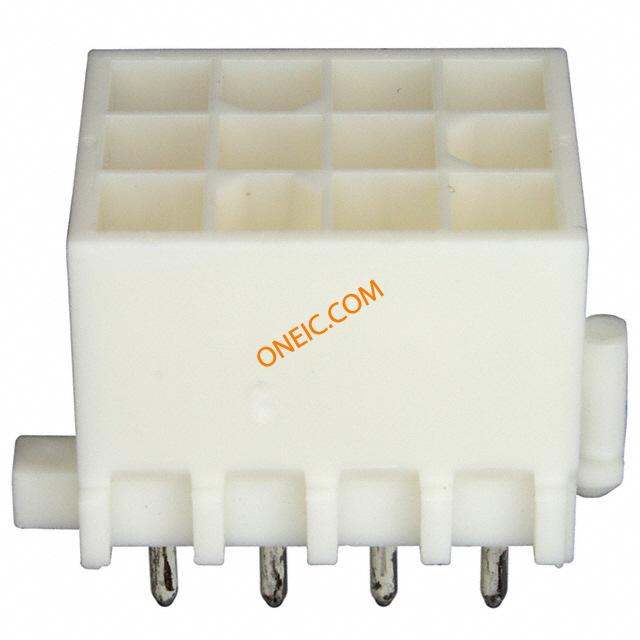

1-770186-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board PIN 12 POS 4.14mm Solder ST Thru-Hole .163" Centerline, 600 V, 9.5 A max. CONN HEADER 12POS VERT .163 GOLD Headers & Wire Housings HEADER 12 POS GOLD MATRIX Conn Power PIN 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port Conn Power PIN 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 124.14 x 4.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, PLUG, 12POS, 4.14MM 12P MINI UMNL ASSY VO SNAU LF |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 高度 | 14.25 mm | 重量 | 0.0001 |
| 直径 | Not Required mm | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 12 | 接触件端接 | :Through Hole Vertical |
| 位数 | 12 | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | PIN |
| 系列 | Mini Universal Mate-N-Lok | 产品特性 | Board Lock |
| 产品子类型 | Headers | 端口数 | 1 Port |
| 加载位置数 | All | ||
