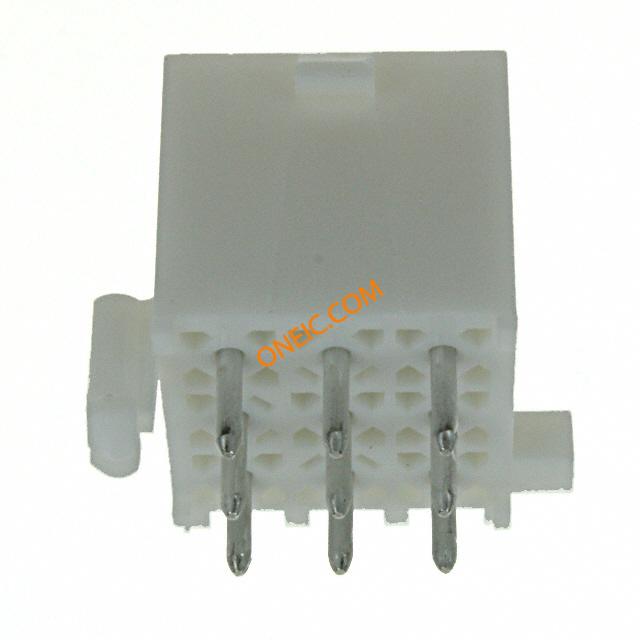

1-770182-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 9 POS 4.14mm Solder ST Thru-Hole 9 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 9POS VERT .163 GOLD Headers & Wire Housings HEADER 9 POS GOLD MATRIX Conn Power HDR 9 POS 4.14mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 9POS, 4.14MM 09P MINI UMNL ASSY VO SNAU LF |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 其他名称 | A32464 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 深度 | 16.03 mm |
| 间距 | 4.14 mm | 高度 | 14.25 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 3 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 14 mm |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 9 | 接触件端接 | :Through Hole Vertical |
| 位数 | 9 | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Mini Universal Mate-N-Lok | 产品特性 | Board Lock |
| 产品子类型 | Headers | 端口数 | 1 Port |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 105C | 结工作温度 | 105C |
