点击放大查看

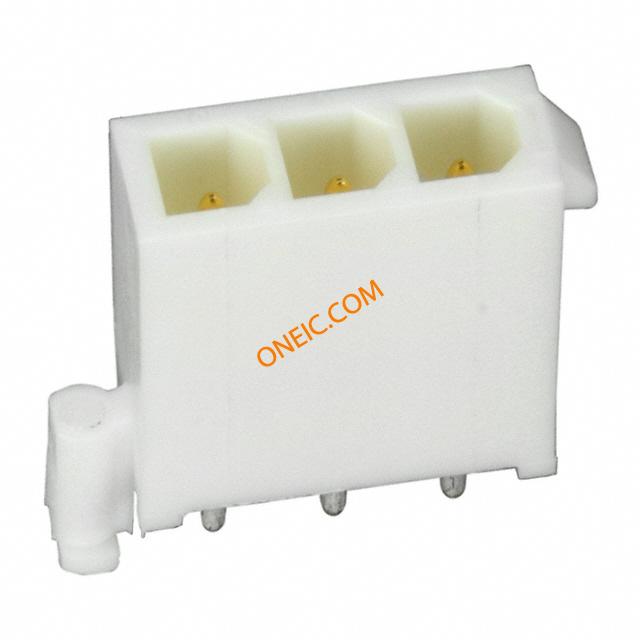

1-770170-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board PIN 3 POS 4.14mm Solder ST Thru-Hole Conn Power PIN 3 POS 4.14mm Solder ST Thru-Hole 3 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 3POS VERT .163 AU Headers & Wire Housings HEADER 3 POS GOLD IN LINE Conn Power PIN 3 POS 4.14mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 9.5A , 通孔 03P MINI UMNL ASSY VO SNAU LF |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| UL等级 | 获得认可 | 零件状态 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA分类 | 已认证 | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 是 | ||
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 供电电压 | 600 | 最大额定电流 | 9.5 A |
| 最小输入电压 | 600VAC | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 深度 | 6.35 mm |
| 间距 | 4.14 mm | 宽度 | 13.49 |
| 高度 | 14.25 mm | 长度 | 17.83 |
| 密封型 | Not Sealed | 直径 | Not Required mm |
| 包装方式 | Bulk | 壳体颜色 | 白色 |
| 方向 | 直 | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 引脚数 | 3 |
| 排数 | 1 | 高度（英寸） | 6.35 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 17.83 mm | 安装特性 | 板锁 |
| 包装数量 | 200 | 面板安装类型 | 通孔 - 焊接 |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 绝缘直径 | 3.2 mm [ .126 in ] | 位数 | 3 |
| 外壳尺寸-插件 | 母端, 母端 | 兼容外壳尺寸（如TM-700等） | 插头护套 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式 | 端子柱长度 | 3.69 mm [ .145 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
产品信息
| 类型 | Wire to Board | 连接器性别 | PIN |
| 系列 | Mini Universal Mate-N-Lok | 覆盖范围 | 覆盖 |
| 产品特性 | Board Lock | 产品子类型 | Headers |
| 端口数 | 1 | 应用细节 | Power |
| 装配配置 | Without | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
| 封装热阻 | .062 mm [ 1.57 in ] | ||
