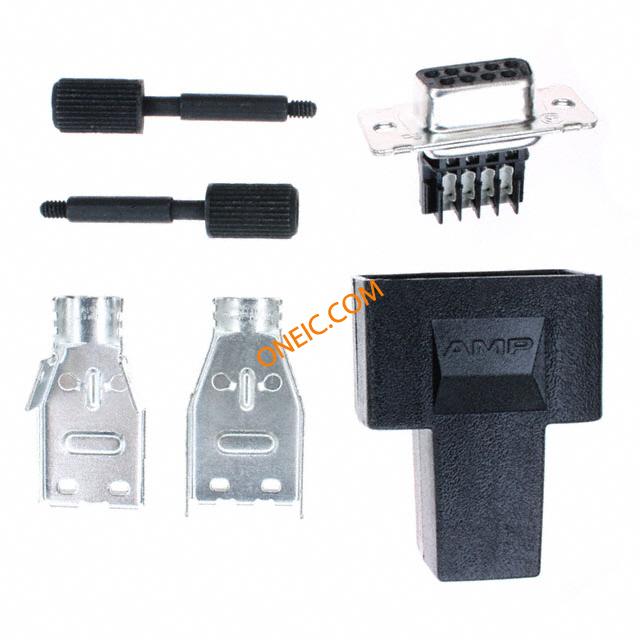

1-747943-5

点击放大查看

1-747943-5

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 9 POS IDT ST Cable Mount 9 Terminal 1 Port Bulk D-Sub Standard Connectors KIT RCPT 9P HDE SHLD ENCLSRE Standard Cable Connectors CONN D-SUB RCPT 9POS 26-30AWG AU Conn D-Subminiature SKT 9 POS IDT ST Cable Mount 9 Terminal 1 Port Bulk Product Highlights:Connector KitProduct Series = HDE-20 (IDC)Number of Positions = 9ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub KIT,RCPT,9P,HDE,SHLD ENCLSRE
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Bulk
工厂包装数量100

合规参数

RoHSRoHS Compliant抗辐射加固No
材料阻燃等级UL 94V-0

电气参数

额定电压250V连接器阻抗刺破式压接 (IDC)
最大额定电流Varies by Wire Gauge最小供电电压250VAC

机械参数

颜色Black深度37.26 mm
间距2.77 mm [ .109 in ]高度0.63 in
外形尺寸(长x宽)1包装方式Bulk
屏蔽是电缆类型分离式导线, 环状护套电缆
绝缘类型Insulated外壳尺寸1
导线线规.05 – .15 mm² [ 30 – 26 AWG ]端接方式IDT
螺纹尺寸4-40触头类型Signal
外壳表面处理锡第二连接器With
安装类型Cable Mount外壳镀层Tin
端子尺寸20线径4.83 – 9.53 mm [ .19 – .375 in ]
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Cable Side; Male Jackscrew (4-40)安装样式Wire
排数2封装形式带有
外壳材料（壳体）Steel连接器样式D-Sub
插入件材料磷青铜屏蔽材料钢
触头材料Phosphor Bronze壳体材料Nylon/Polyester
总长度34.41 mm安装特性无
包装数量1接地凹痕Without
绝缘高度Yes端接样式IDC
外径9.53 mm [ .375 in ]触点数9
绝缘直径1.52 mm [ .06 in ]位数9
外壳尺寸-插件Front Metal Shell外壳材料及表面处理Steel, Tin Plated
接触镀层厚度30µin (0.76µm)线规或范围 - AWG30 – 26
触点材料 - 镀层热塑性护套（绝缘）材料Zinc Alloy
线缆外径（最大）4.83 – 9.53 mm [ .19 – .375 in ]外壳尺寸，连接器布局1 (DE, E)

产品信息

备注屏蔽外壳扩张工具 58241-4 适用的最大电缆外直径为 9.02 [.355]。, 护套和编织层移除后的最大电缆直径。类型D-Subminiature
等级标准连接器性别SKT
产品特性Backshell, Shielded预装No
产品子类型连接器端口数1 Port

环境参数

工作温度-55°C ~ 105°C
