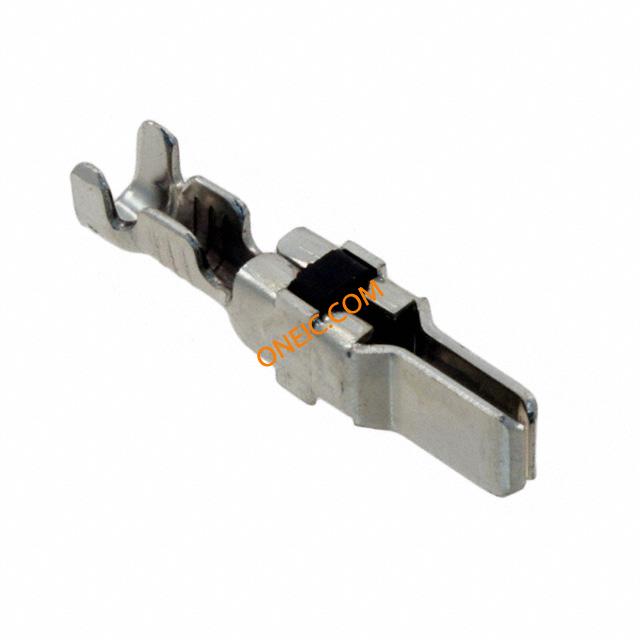

点击放大查看
1-66255-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 12-16AWG TIN CRIMP Pin & Socket Connectors MALE CONTACT ASSM (STRIP) Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinTin Contact Mating Area PlatingWire Range = 1.25-1.40² [16] mm [AWG], 2.00-3.00² [14-12] mm [AWG]Insulation Diameter = 3.43 - 4.06 mmCopper Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts MALE CONTACT ASSY. (STRIP) |
| 分类 |
商业参数
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 1500 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 测试电流 | 15 | ||
机械参数
| 镀层 | Tin | 材料（通用） | Copper |
| 包装方式 | Strip | 电缆类型 | 分离式导线 |
| 导线线规 | 12-16 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Pin |
| 连接器类型 | Connector Circular | 接触镀层 | Tin Over Nickel |
| 插入件材料 | 铜 | 触头材料 | Copper |
| 包装数量 | 1500 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 绝缘直径 | 3.43 – 4.06 mm [ .135 – .16 in ] | 镀层厚度（通用） | 50µin (1.27µm) |
| 兼容外壳尺寸（如TM-700等） | CPC 连接器, G 系列连接器, M 系列连接器 | 接触件表面处理 - 配合 | 锡 |
| 线规或范围 - AWG | 14-12 | ||
产品信息
| 类型 | Power, Stamped | 连接器性别 | PIN |
| 系列 | Multimate XII | 产品子类型 | Contacts |
| 应用细节 | Power | ||
