1-644875-0

点击放大查看

1-644875-0

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 10 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 10POS R/A .100 TIN 10P MTA100 HDR ASSY F/L,SP BND 10P MTA100 HDR ASSY F/L,SP BND Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格1标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

供电电压250额定交流电压250
连接器阻抗焊接最大额定电流5

机械参数

颜色Natural间距2.54 mm
高度10.03 mm [ .395 in ]长度25.4 mm [ 1 in ]
包装方式Bulk遮蔽类型No
壳体颜色自然端接方式Solder
触头类型Male Pin第二连接器With
触点形状Square外壳颜色Natural
安装类型Right Angle连接器类型Header, Unshrouded
接触镀层Tin触点时序Without
紧固类型Friction Lock安装样式带有
排数1壳体镀层Tin
旋转角度34°外壳材料（壳体）摩擦锁
连接器用途Header插入件材料铜合金
锁定特性Friction Lock触头材料Copper Alloy
壳体材料聚酯 - GF安装特性Without
包装数量1面板安装类型Without
端接样式插针配接方向Without
触点数10端接表面处理不带
位数10后壳中断功能Without
兼容外壳尺寸（如TM-700等）MTA .100 连接器组件触头长度-柱电源
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]接触长度 - 配合0.295" (7.49mm)
端子柱长度7.49 mm [ .295 in ]接触镀层厚度3.81 µm [ 150 µin ]
恢复后小径No静电放电屏蔽不带
直角致动器长度Front护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
加载位置数All跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]

相关型号

4-644577-0

4-644577-0

te connectivity / amp

Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers 10P MTA100 CONN ASSY BLK LF Headers & Wire Housings 10P MTA100 CONN ASSY BLK LF

¥4.6240
详情

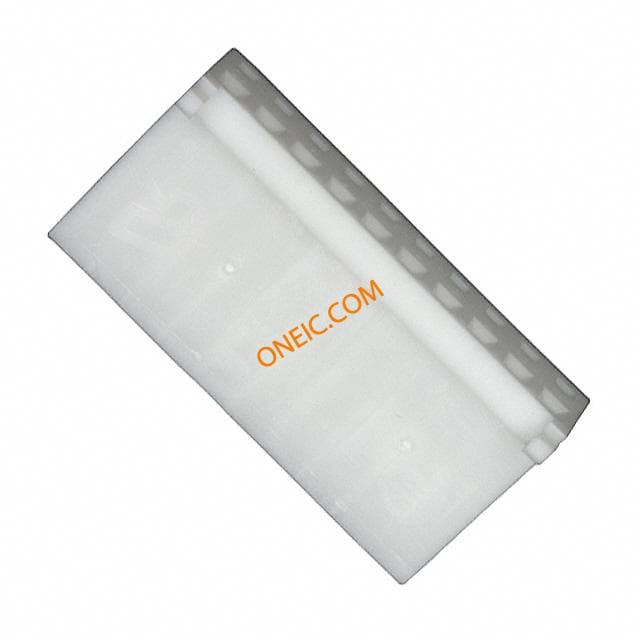

1-1375820-0
