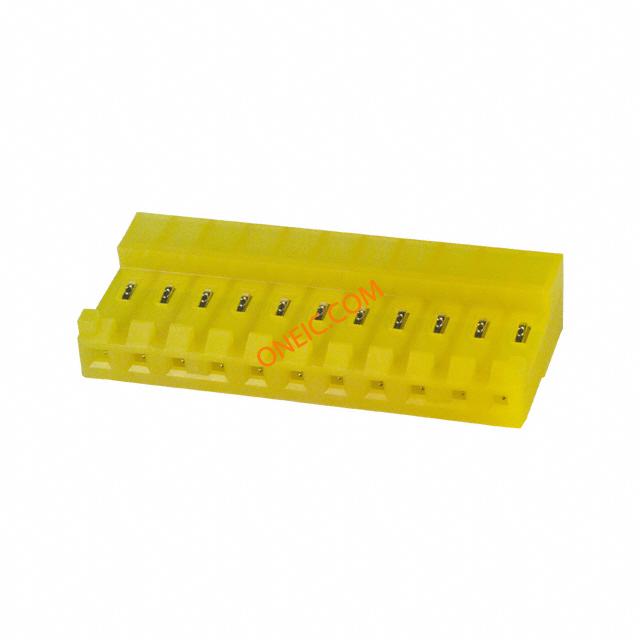

1-643818-1

点击放大查看

1-643818-1

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 11 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 11POS MTA-156 20AWG Headers & Wire Housings 11P CONN ASSY 20 AWG YEL 11P MTA156 CONN ASSY 20AWG YEL 11P MTA156 CONN ASSY 20AWG YEL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A26104标准包装规格250
产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSContains lead / RoHS non-compliant

电气参数

额定电压600 VAC开关功能Locking Ramp
最大额定电流7 A

机械参数

颜色Yellow间距3.96 mm
包装方式Bulk导线类型Discrete or Ribbon Cable
导线线规20 AWG端接方式IDT
触头类型Female Socket安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Bright Tin-Lead Over Nickel
紧固类型Locking Ramp安装样式Wire
排数1触头材料Copper Alloy
壳体材料Nylon电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数11位数11
接触镀层厚度80µin (2.03µm)

产品信息

类型IDC Connector连接器性别F
系列MTA-156产品特性Closed End, Polarizing Key
产品子类型Connector Assemblies
