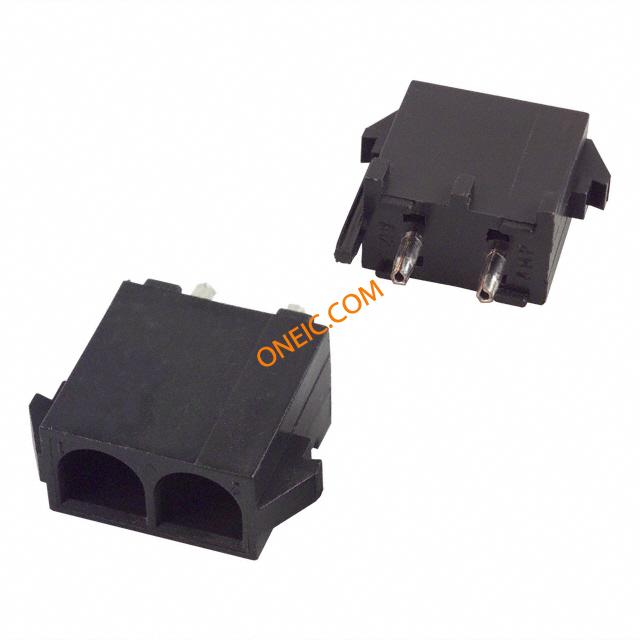

1-641964-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS .250 VERT AU Pin & Socket Connectors HDR PIN 1X02C VRT V0 Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:ConnectorConnector Type = Header - PinUniversal MATE-N-LOK Product LineIn-Line Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL HDR ASSY POL BLK |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | ||
机械参数
| 颜色 | Black | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 引脚数 | 2 | 排数 | 1 |
| 封装形式 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 包装数量 | 100 |
| 面板安装类型 | 通孔 - 焊接 | 端接样式 | Pin |
| 第一触头极性 | Pin (Male) | 触点数 | 2 |
| 位数 | 2 | 兼容外壳尺寸（如TM-700等） | 与插头护套插接（使用插座端子） |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡铅 |
| 典型触点布局 | 直插式 | 端子柱长度 | 3.56 mm [ .14 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Universal Mate-N-Lok | 产品特性 | Board Guide |
| 产品子类型 | Headers | 应用细节 | Power |
| 装配配置 | Without | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
| 封装热阻 | .062 mm [ 1.57 in ] | ||
相关型号
1-480698-5
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L GREEN Power to the Board 02P PLUG HSG GRN Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG GRN
1-480698-6
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L BLUE Power to the Board 02P PLUG HSG BLU Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG BLU
1-480698-9
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 2POS 94V-2 BLK Housing FH 2 way Pin/sckt UMNL Power to the Board PLUG HOUSE 2 POS BLACK UL94V-2 Conn Housing PL 2 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;PlugHsg;2Pos;UnivMATE-N-LOK;Black 02P UMNL PLUG HSG BLK
1-480698-0
te connectivity / amp
Conn Housing PL 2 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS 94V-2 UNI-MATE Housing,plug,free hanging,2way Pin & Socket Connectors PLUG HOUSE 2 POS Conn Housing PL 2 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 2WAY Connector,SoftShell;UniversalMATE-N-LOK;2;Plug;Nylon;Natural;19A Plug; wire-wire; male/female; 6.35mm; PIN:2; UL94V-2; Locking: lock Crimp housing Pitch6.35 mm Poles 2 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480698-0, TE Connectivity 02P UMNL PLUG HSG NATL

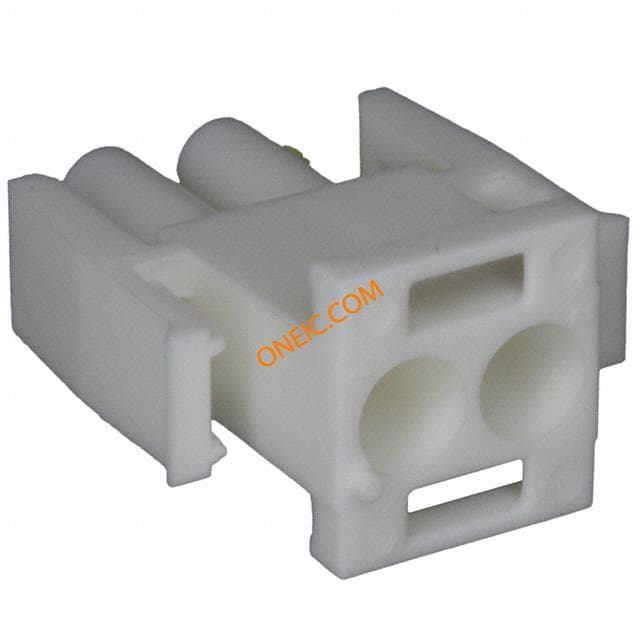

350777-1
te connectivity / amp
Conn Housing PL 2 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS 94V-0 UNI-MATE 2 way white plug housing Pin & Socket Connectors PLUG HOUSE 2 POS Conn Housing PL 2 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 2WAY Connector,SoftShell;UniversalMATE-N-LOK;2;Plug;Nylon;White;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:2 Crimp housing Pitch6.35 mm Poles 2 Single row / Free hanging/cable mount MATE-N-LOK Universal, 350777-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 2 路 直 公 压接连接器外壳 02P UMNL PLUG HSG

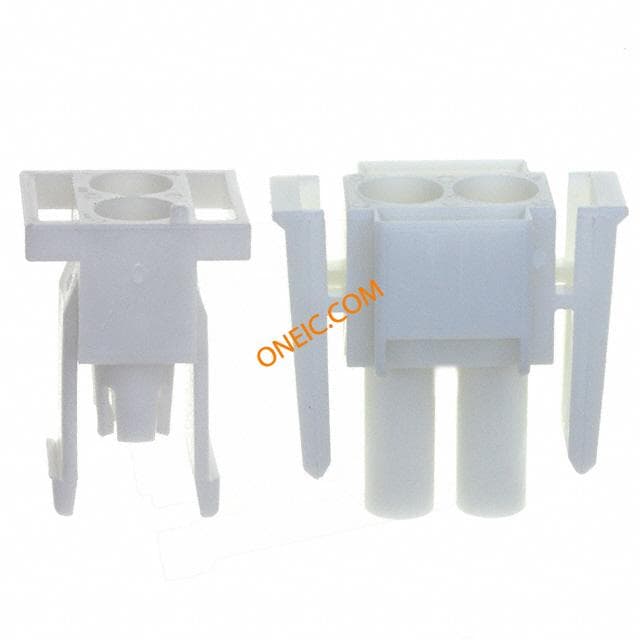

770017-1
