1-640457-6

点击放大查看

1-640457-6

制造商
TE Connectivity Ltd.
描述
Conn Wire to Board HDR 16 POS 2.54mm Solder RA Thru-Hole MTA-100 CL Connectors CONN HEADER 16POS R/A .100 TIN Headers & Wire Housings FRICTION LCK HDR 16P Right Angle Post tin Conn Wire to Board HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:Header16 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 16P MTA100 HDR ASSY SQ R/A F/L
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量10

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
RoHS/ELV合规状态RoHS compliant / ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250.0开关功能Friction Lock
供电电压250接触电阻6 mohm
连接器阻抗焊接最大额定电流5 A
最小供电电压250VAC

机械参数

颜色Natural深度11.55 mm
间距2.54 mm高度5.71 mm
长度40.64 mm [ 1.6 in ]包装方式Bulk
遮蔽类型No壳体颜色自然
端接方式Solder触头类型Pin
第二连接器With触点形状Square
外壳颜色White安装类型Right Angle
连接器类型Header接触镀层Tin
触点时序Without紧固类型Friction Lock
安装样式Through Hole排数1
壳体镀层Tin外壳材料（壳体）摩擦锁
连接器样式Plug插入件材料铜合金
锁定特性Friction Lock触头材料Copper Alloy
壳体材料Polyester总长度40.64 mm
安装特性Without包装数量1000
面板安装类型Without主要材料Copper Alloy
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)触点数16
端接表面处理不带位数16
后壳中断功能Without中心触点表面处理2.54
兼容外壳尺寸（如TM-700等）MTA .100 连接器组件触头长度-柱3.56 mm [ .14 in ]
配接堆叠高度Without安装孔直径不带
接触件表面处理 - 配合锡典型触点布局同轴
接触长度 - 配合0.295" (7.49mm)触点材料 - 柱Copper Alloy
表面贴装焊盘尺寸Without端子柱长度3.56
接触镀层厚度3.81 µm [ 150 µin ]恢复后小径No
触点材料 - 配合Tin静电放电屏蔽不带
直角致动器长度Front护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100可密封否
产品子类型Headers应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度-55C to 105C封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
1-640457-6

相关型号

1-640440-6

1-640440-6

te connectivity / amp

Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 16POS MTA100 22AWG RED Headers & Wire Housings MTA 100 CONN 22-16 Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 16Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;ClosedEnd;16;Nylon;CopperAlloy;Tin-Lead;0.100in.;22AWG 16P MTA100 CONN ASSY 22AWG RED

¥11.5600
详情
1-1375820-6

1-1375820-6

te connectivity / amp

Conn Housing RCP 16 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 16POS CST-100 II Headers & Wire Housings 16P RECEPT HSNG Conn Housing RCP 16 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 16Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 16 POS

¥1.7612
详情

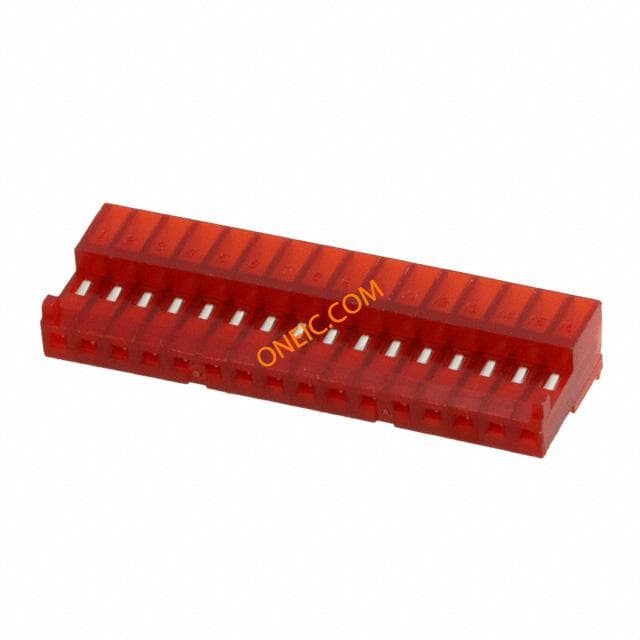

4-643813-6

4-643813-6

te connectivity / amp

Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 16POS 22AWG MTA-100 Headers & Wire Housings REC 16P C/E 22AWG W/ TABS Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 16Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPTACLE, IDC, 22AWG, 16WAY 16P MTA100 CONN ASSY POL RIB

¥12.5120
详情

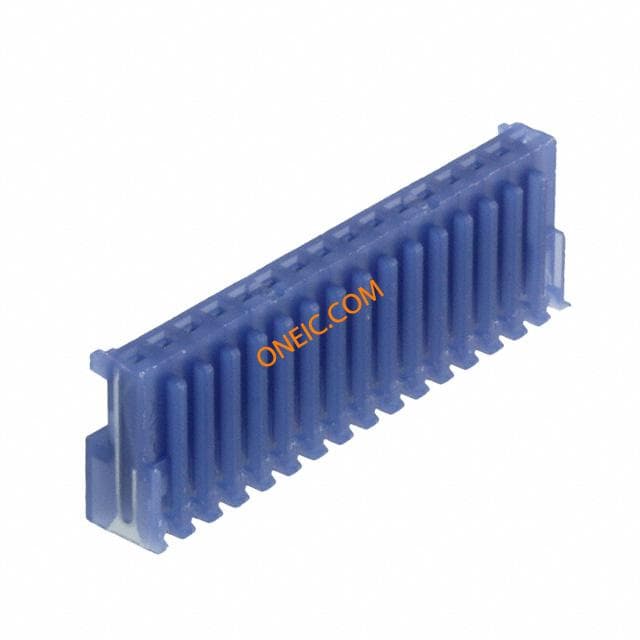

4-643815-6

4-643815-6

te connectivity / amp

Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 16POS 26AWG MTA-100 Headers & Wire Housings REC 16P C/E 26AWG W/ TABS Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:16 PositionsPreloadedHousing Gender = PlugContact Gender = ReceptacleConnector Style = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 16P MTA100 CONN ASSY POL RIB

¥24.7950
详情
