1-640455-6

点击放大查看

1-640455-6

制造商
TE Connectivity Ltd.
描述
Conn Wire to Board HDR 16 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 16POS R/A .100 TIN Headers & Wire Housings POLARIZED HEADER 16P Right Angle Post tin Conn Wire to Board HDR 16 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 16P MTA100 HDR ASSY SQ R/A POL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
接触电阻6 mohm额定交流电压250
连接器阻抗焊接最大额定电流5 A
最小供电电压250VAC

机械参数

颜色Natural深度11.05 mm
间距2.54 mm高度5.72 mm
长度40.64 mm [ 1.6 in ]包装方式Bulk
遮蔽类型No壳体颜色自然
端接方式Solder触头类型Male Pin
第二连接器Without触点形状Square
外壳颜色White安装类型Right Angle
连接器类型Header, Unshrouded接触镀层Tin
触点时序Without安装样式Through Hole
排数1壳体镀层Tin
外壳材料（壳体）极化连接器用途Header
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester总长度40.64 mm
安装特性Without包装数量1
面板安装类型Without尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
配接方向With触点数16
端接表面处理不带位数16
后壳中断功能Without兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱3.56 mm [ .14 in ]安装孔直径不带
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
接触长度 - 配合0.295" (7.49mm)触点材料 - 柱Copper Alloy
表面贴装焊盘尺寸Without端子柱长度3.56 [0.140]
接触镀层厚度3.81 µm [ 150 µin ]恢复后小径No
静电放电屏蔽不带直角致动器长度Front
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100产品特性Polarizing Key
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55C to 105C封装热阻1.6 mm [ .063 in ]

相关型号

1-640440-6

1-640440-6

te connectivity / amp

Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 16POS MTA100 22AWG RED Headers & Wire Housings MTA 100 CONN 22-16 Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 16Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;ClosedEnd;16;Nylon;CopperAlloy;Tin-Lead;0.100in.;22AWG 16P MTA100 CONN ASSY 22AWG RED

¥11.5600
详情
1-1375820-6

1-1375820-6

te connectivity / amp

Conn Housing RCP 16 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 16POS CST-100 II Headers & Wire Housings 16P RECEPT HSNG Conn Housing RCP 16 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 16Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100 II HOUSING 16 POS

¥1.7612
详情

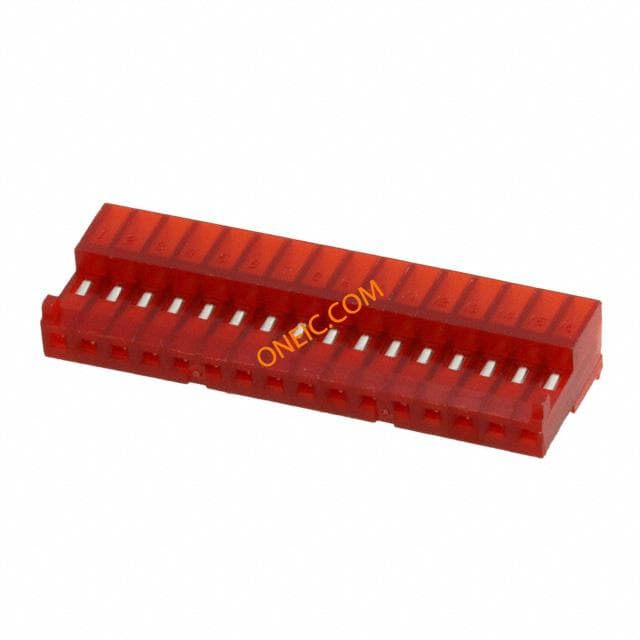

4-643813-6

4-643813-6

te connectivity / amp

Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 16POS 22AWG MTA-100 Headers & Wire Housings REC 16P C/E 22AWG W/ TABS Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 16Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPTACLE, IDC, 22AWG, 16WAY 16P MTA100 CONN ASSY POL RIB

¥12.5120
详情

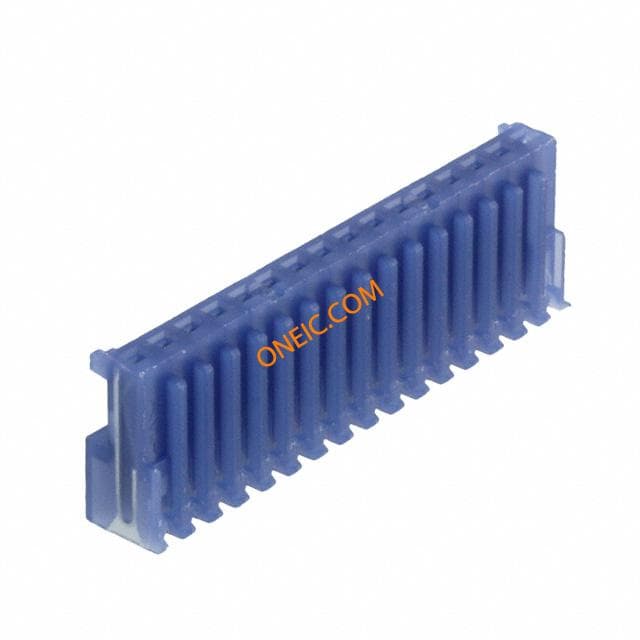

4-643815-6
