1-640383-3

点击放大查看

1-640383-3

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 13 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 13POS VERT .156 TIN Headers & Wire Housings 13P MTA156 HDR ASSY 13 Position 3.96 mm Pitch Vertical Through Hole Header 13P MTA156 HDR ASSY STR SQ SN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量500

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0材料阻燃等级UL 94 V-0

电气参数

额定电压600 V供电电压600
最大额定电流7 A

机械参数

颜色Natural间距3.96 mm
长度51.51 mm [ 2.028 in ]密封型Not Sealed
包装方式Bulk端接方式Solder
触点形式Male Pin触头类型Male Pin
安装类型Through Hole连接器类型Header, Unshrouded
接触镀层Tin Over Nickel触点时序Without
安装样式不带引脚数13
排数1封装形式Plug
壳体镀层Nickel插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
包装数量500面板安装类型通孔 - 焊接
端接样式Through Hole第一触头极性Pin (Male)
触点数13位数13
兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件安装孔直径不带
接触件表面处理 - 配合锡典型触点布局直插式
接触长度 - 配合0.400" (10.16mm)端子柱长度3.18 mm
接触镀层厚度2.54 µm [ 100 µin ]静电放电屏蔽不带
每排/每行位置数All护套（绝缘）厚度50 µm [ 1.27 µin ]

产品信息

类型Unshrouded Header连接器性别HDR
系列MTA-156产品子类型Headers
应用细节Wire-to-Board加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]
封装热阻.063 mm [ 1.6 in ]

文档与媒体

在线文档
1-640383-3

相关型号

暂无图片

1-641218-3

te connectivity / amp

Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount CONN RCPT 13POS .156 GOLD

详情
1-643819-3

1-643819-3

te connectivity / amp

Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 13POS .156 22AWG RED Headers & Wire Housings 13P MTA156 CONN ASSY 22AWG RED MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 13Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA156 CONN ASSY 22AWG RED

¥3.1680
详情
1-640604-3

1-640604-3

te connectivity / amp

Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 18AWG MTA156 Headers & Wire Housings 13P MTA156 CONN ASSY 18AWG ORA 13P MTA156 CONN ASSY 18AWG ORA 13P MTA156 CONN ASSY 18AWG ORA Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.3120
详情
4-643817-3

4-643817-3

te connectivity / amp

Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 18AWG MTA156 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 13Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA156 CONN ASSY 18AWG ORA

¥4.6080
详情
1-644461-3

1-644461-3

te connectivity / amp

Conn IDC Connector RCP 13 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 13POS .156 POLAR TIN Headers & Wire Housings 13P MTA156 CONN ASSY 18AWG ORA 13P MTA156 CONN ASSY 18AWG ORA 13P MTA156 CONN ASSY 18AWG ORA Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.0096
详情
4-640426-3

4-640426-3

te connectivity / amp

Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 18AWG MTA156 Headers & Wire Housings REC 13P C/E 18AWG RAMP Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 13Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA156 CONN ASSY 18AWG ORA

¥4.8240
详情
1-640431-3

1-640431-3

te connectivity / amp

Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 13POS 18AWG MTA-156 Headers & Wire Housings 13P MTA156 CONN ASSY 500 Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA156 CONN ASSY 18AWG ORA

¥3.0960
详情
1-640427-3

1-640427-3

te connectivity / amp

Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 13POS 20AWG MTA-156 Headers & Wire Housings 13P MTA156 CONN ASSY 500 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Connectors13 PositionsMating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA156 CONN ASSY 20AWG YEL

¥3.9600
详情
4-640430-3

4-640430-3

te connectivity / amp

Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 26AWG MTA156 Headers & Wire Housings 13P MTA156 CONN ASSY 26AWG BLU 13P MTA156 CONN ASSY 26AWG BLU

¥2.8800
详情
4-640431-3

4-640431-3

te connectivity / amp

Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 18AWG MTA156 Headers & Wire Housings REC 13P C/E 18 AWG Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 13Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA156 CONN ASSY 18AWG ORA

¥2.8224
详情
4-640432-3

4-640432-3

te connectivity / amp

Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 20AWG MTA156 Headers & Wire Housings 13P MTA156 CONN ASSY 20AWG YEL 13P MTA156 CONN ASSY 20AWG YEL

¥2.8800
详情
4-640433-3

4-640433-3

te connectivity / amp

Conn IDC Connector F 13 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 22AWG MTA156 Headers & Wire Housings 13P MTA156 CONN ASSY 22AWG RED 13P MTA156 CONN ASSY 22AWG RED 13P MTA156 CONN ASSY 22AWG RED Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥4.9536
详情

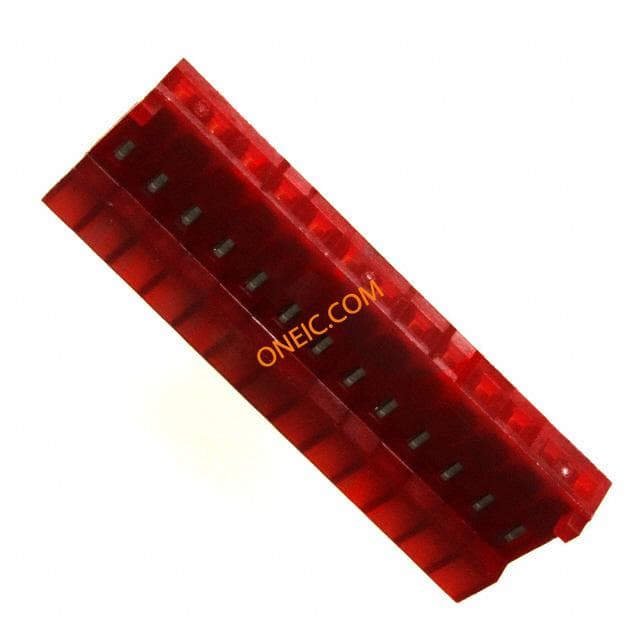

4-644463-3
