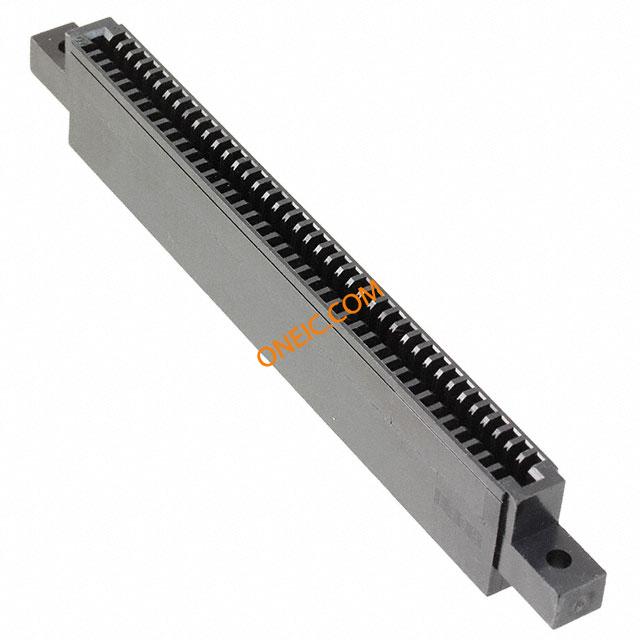

1-583718-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 80 POS 2.54mm Crimp ST Cable Mount .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) CONN HOUSING 20POS DUAL .100 BLK DIN 41612 Connectors TW LEAF CRP HSG 40P .100, .125, .156 Centerline Connectors (Crimp Snap Twin Leaf) Product Highlights:Housing40 Dual Positions2.54 mm CenterlineWith Mounting EarsSearch Keywords:card edge, wire to board, NIC, Network Interface Cards, PC Cards, wire to board, power, high density, pcb connectors CONN CARDEDGE HSG DUAL 80POS TW LEAF CRP HSG. 40-POS. |
| 分类 |
商业参数
| 标准包装规格 | 125 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 连接器阻抗 | 压接 | 最大额定电流 | 5 |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 导线线规 | 16-28 AWG |
| 外壳颜色 | Black | 安装类型 | Straight |
| 卡厚度 | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) | 连接器类型 | 印刷电路板 |
| 法兰特征 | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | 安装样式 | 不带 |
| 排数 | 2 | 高度（英寸） | .75 |
| 壳体材料 | Polyester GF | 总长度 | 5.1 |
| 安装特性 | With | 包装数量 | 125 |
| 端接样式 | Crimp | 触点数 | 80 |
| 位数 | 80 | 绝缘材料 - 材质 | Polyester Thermoplastic, Glass Filled |
| 安装孔直径 | 带有 | 中心触点材料 | 2.54 [0.100] |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Twin Leaf |
| 产品特性 | Flange | 卡类型 | Non Specified - Dual Edge |
| 产品子类型 | Housing | 转换前位置数 | 40 |
