1-5747871-6
| 制造商 | TE Connectivity Ltd. |

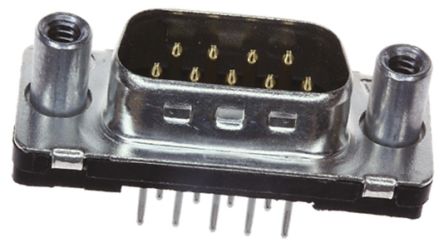

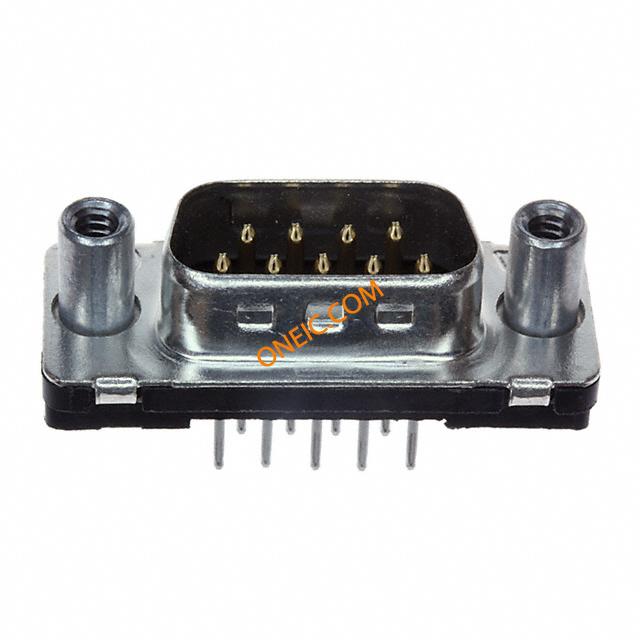

| 描述 | Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09P V/MNT Standard Board Mount Connectors CONN D-SUB PLUG STR 9POS PCB AU Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9PlugPCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBPlug;9Pos;STR;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.743mm 节距 9 路 直向 印刷电路板安装 PCB D-sub 连接器 插头 09 PLUG SP/FMS SCRLK |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 17 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL E28476 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 连接器阻抗 | 母端螺钉锁，固定 | 最大额定电流 | 6A |
| 最小供电电压 | 250VDC/250VAC | ||
机械参数
| 颜色 | Black | 深度 | 12.54 mm |
| 间距 | 2.74 mm | 宽度 | 0.494in |
| 高度 | 11.96 mm | 长度 | 1.213in |
| 密封型 | No | 外形尺寸(长x宽) | 1 |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 引脚样式 | Round | 外壳尺寸 | 1 |
| 方向 | 直 | 端接方式 | Solder |
| 触点尺寸 | 1 | 触头类型 | Signal |
| 柱间距 | .108 | 外壳表面处理 | 锡 |
| 第二连接器 | With | 触点形状 | Round |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Mating Side; Female Screwlock (4-40) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.093 â 0.125 [2.36 â 3.18] |
| 连接器样式 | D-Sub | 插入件材料 | 黄铜 |
| 锁定特性 | Female Screwlocks, Fixed | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 总长度 | 30.81 mm | 安装特性 | 安装孔 |
| 包装数量 | 17 | 面板安装类型 | Without |
| 尺寸/外形 | 0.66 [.026] | 接地凹痕 | With |
| 端接样式 | Solder | 连接器颜色 | None |
| 外径 | .66 mm [ .026 in ] | 触点数 | 9 |
| 位数 | 9 | 外壳尺寸-插件 | Front Metal Shell |
| 安装孔直径 | 3.07 [.121] | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 4.32 [0.170] | 接触镀层厚度 | Flash |
| 螺钉材料 - 镀层 | Zinc | 外壳与棱镜材料 | 否 |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 产品特性 | Grounding Indents | 可密封 | 否 |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | 连接器 | 端口数 | 1 Port |
| 其他规格 | 4-40 UNC，包容式螺钉锁 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 – 3.18 mm [ .093 – .125 in ] |
